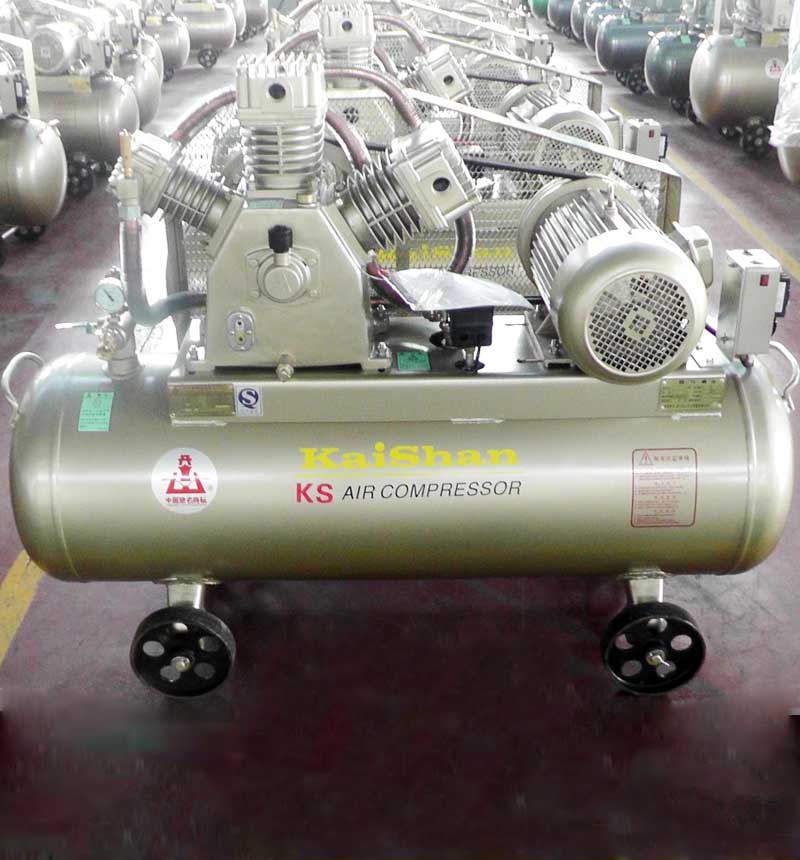

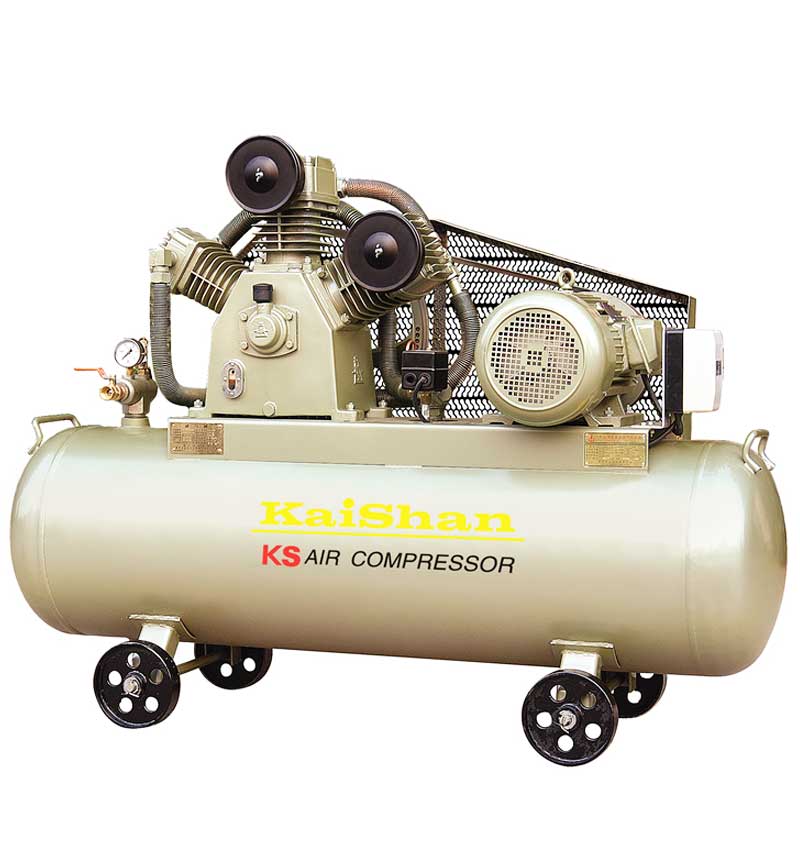

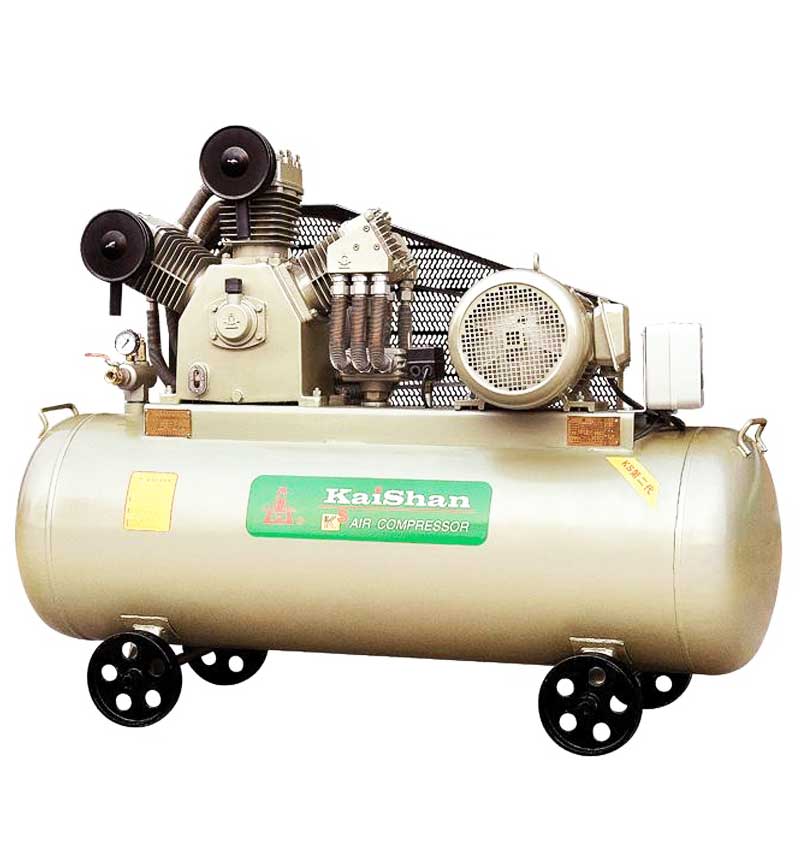

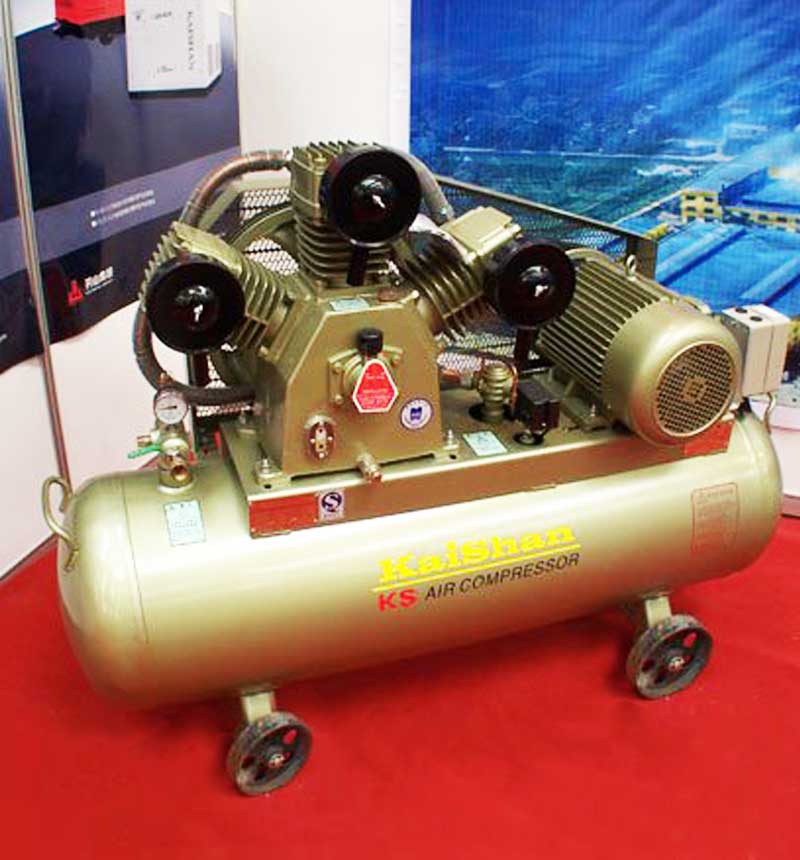

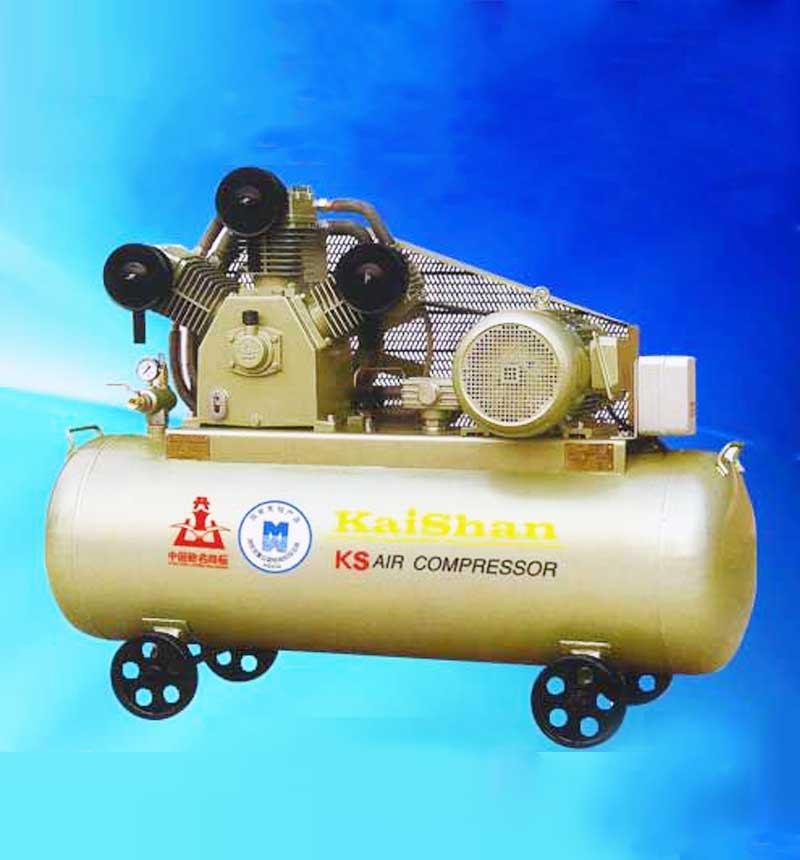

Industrial Piston Air Compressors (KS series)
Name :Industrial Piston Air Compressors (KS series)
Discharge pressure:0.8-1.25 Mpa
Displacement::0.08-2.1M3/Min
Engine power range:1.1-18.5 kW
Quantities can be customized
Features of Industrial Compressors (KS series):
With a low rotational speed, compressors operate more quietly with a longer service life;
The reed valve design ensures higher efficiency;
The air filter core is made of imported filter paper, which ensures excellent filtration and noise reduction effects. In addition, it features long-lasting durability;
The electromagnetic switch uses imported brand products, including Schneider and Tai’an Technology;
The Riken piston ring features long-lasting durability without the addition of oil;
The breather channel is structured with a maze pattern to prevent oil leaks;
Precisely balanced, motion components operate steadily with low noise level;
One-way valve core uses advanced composite materials, preventing air leaks;
Our fan wheels are patented technology, achieving better results in lowering temperature;
Suitable for 16 hours of continuous operation.
With a low rotational speed, compressors operate more quietly with a longer service life;
The reed valve design ensures higher efficiency;
The air filter core is made of imported filter paper, which ensures excellent filtration and noise reduction effects. In addition, it features long-lasting durability;
The electromagnetic switch uses imported brand products, including Schneider and Tai’an Technology;
The Riken piston ring features long-lasting durability without the addition of oil;
The breather channel is structured with a maze pattern to prevent oil leaks;
Precisely balanced, motion components operate steadily with low noise level;
One-way valve core uses advanced composite materials, preventing air leaks;
Our fan wheels are patented technology, achieving better results in lowering temperature;
Suitable for 16 hours of continuous operation.
| Technical Data of Industrial Piston Air Compressors (KS series) | |||||
| Serial number | Model | Engine power | Displacement | Maximum working pressure | Dimensions |
| HP/kW | m3/min | MPa (kg/cm2G) | L×W×H (mm) | ||
| 1 | KS10 | 1.5/1.1 | 0.08 | 0.8 (8) | 810×240×800 |
| 2 | KS15 | 2.0/1.5 | 0.12 | 0.8 (8) | 860×350×710 |
| 3 | KS20 | 3.0/2.2 | 0.18 | 0.8 (8) | 980×370×800 |
| 4 | KS30 | 3.0/2.2 | 0.25 | 0.8 (8) | 1,000×450×750 |
| 5 | KS40 | 4.0/3 | 0.4 | 0.8 (8) | 1,500×520×1,050 |
| 6 | KS55 | 5.5/4 | 0.55 | 0.8 (8) | 1,500×520×1,050 |
| 7 | KS75 | 7.5/5.5 | 0.75 | 0.8 (8) | 1,600×570×1,110 |
| 8 | KS100 | 10/7.5 | 1 | 0.8 (8) | 1,650×600×1,200 |
| 9 | KS150 | 15/11 | 1.5 | 0.8 (8) | 1,850×650×1,370 |
| 10 | KS200 | 20/15 | 2 | 0.8 (8) | 1,850×680×1,420 |
| 11 | KS240 | 20/15 | 2.4 | 0.8 (8) | 1,850×710×1,440 |
| 11 | W327-D1 | 25/18.5 | 3.2 | 0.7 (7) | 1,900×880×1,650 |
| 12 | KSH30 | 3.0/2.2 | 0.21 | 1.25 (12.5) | 1,500×520×1,050 |
| 13 | KSH40 | 4.0/3 | 0.3 | 1.25 (12.5) | 1,500×520×1,050 |
| 14 | KSH55 | 5.5/4 | 0.45 | 1.25 (12.5) | 1,500×520×1,050 |
| 15 | KSH75 | 7.5/5.5 | 0.6 | 1.25 (12.5) | 1,650×600×1,200 |
| 16 | KSH100 | 10/7.5 | 0.8 | 1.25 (12.5) | 1,650×600×1,200 |
| 17 | KSH100D | 10/7.5 | 1.05 | 1.0 (10) | 1,650×600×1,200 |
| 17 | KSH150 | 15/11 | 1.2 | 1.25 (12.5) | 1,650×650×1,400 |
| 17 | KSH150D | 15/11 | 1.6 | 1.0 (10) | 1,650×700×1,400 |
| 18 | KSH200 | 20/15 | 1.7 | 1.25 (12.5) | 1,850×800×1,550 |
| 19 | KSH240 | 20/15 | 2.1 | 1.25 (12.5) | 1,850×800×1,600 |
