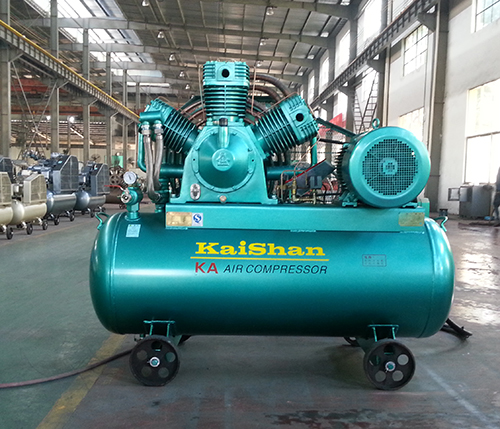

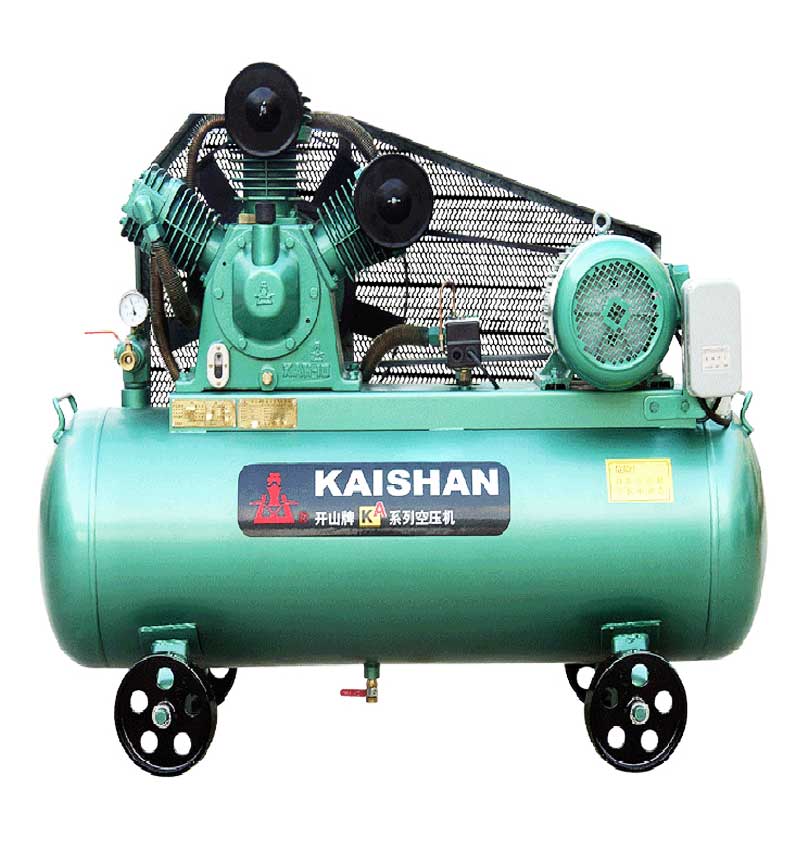

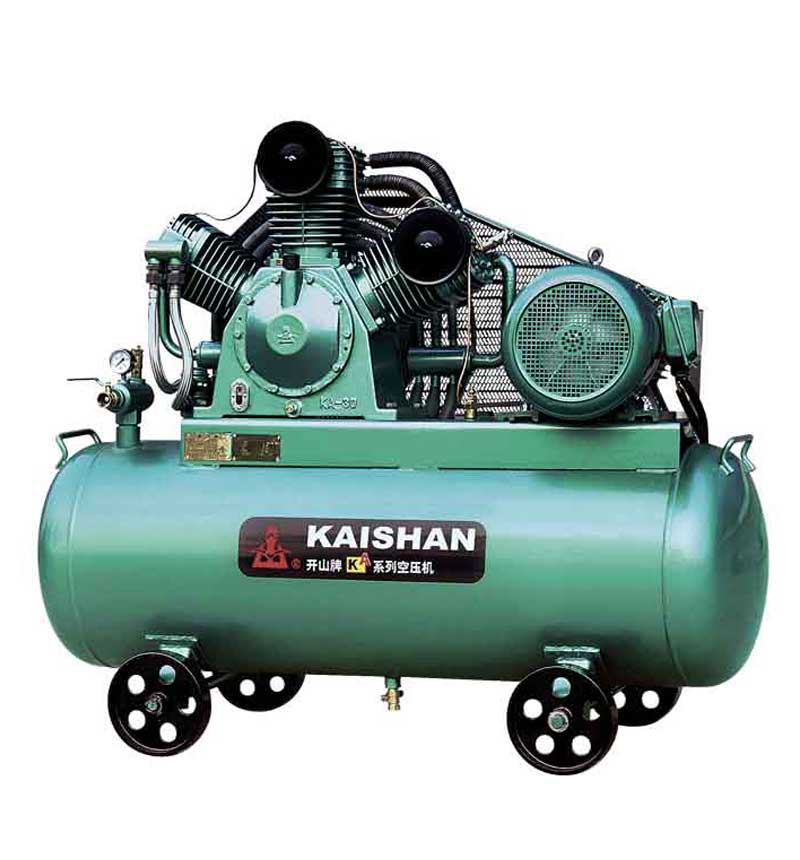

Industrial Piston Air Compressors (KA series)
Product name:Piston Air Compressors(KA series)
Discharge pressure:0.8-1.25mpa
Displacement:0.3-3.00M3/Min
Engine power range:2.2-22 kW
Quantities can be customized
Industrial Air Compressors (KA series)
Industrial Air Compressors (KA series) are widely applied to situations requiring compressed air for pneumatic clamping, pneumatic tools, tire inflation, blow molding, spray painting, sand blasting, fluidic components, and others.
To ensure a powerful design for compressor heads, sufficient first-rate materials are utilized. In addition, the design of major components is reinforced, with the size and weight of the compressor head larger than products of other manufacturers, as well as a better safety tolerance. Designed with a low rotational speed, such compressors are particularly suitable for continuous operations under heavy loads during a lengthy timeframe, while maintaining long service life with great reliability.
These compressors are designed with special heat dissipation and airflow control. The discharge temperature is low, carbon buildup is less likely, and the efficiency is high.
The design of a ring valve bank comprises Swedish stainless valve plates and Japanese specialized valve springs. In operation, the valve plates do not experience any bending motion, ensuring excellent valve performance and service life
The Riken piston ring is endurable for a long period without the addition of oil.
The frequently quenched bent axle is particularly wearable.
As precisely balanced, the motion components operate steadily with a very low noise level.
Industrial Air Compressors (KA series) are widely applied to situations requiring compressed air for pneumatic clamping, pneumatic tools, tire inflation, blow molding, spray painting, sand blasting, fluidic components, and others.
To ensure a powerful design for compressor heads, sufficient first-rate materials are utilized. In addition, the design of major components is reinforced, with the size and weight of the compressor head larger than products of other manufacturers, as well as a better safety tolerance. Designed with a low rotational speed, such compressors are particularly suitable for continuous operations under heavy loads during a lengthy timeframe, while maintaining long service life with great reliability.
These compressors are designed with special heat dissipation and airflow control. The discharge temperature is low, carbon buildup is less likely, and the efficiency is high.
The design of a ring valve bank comprises Swedish stainless valve plates and Japanese specialized valve springs. In operation, the valve plates do not experience any bending motion, ensuring excellent valve performance and service life
The Riken piston ring is endurable for a long period without the addition of oil.
The frequently quenched bent axle is particularly wearable.
As precisely balanced, the motion components operate steadily with a very low noise level.
| Technical Data of Industrial Piston Air Compressors (KA series) | |||||
| Serial number | Model | Engine power | Displacement | Maximum working pressure | Dimensions |
| HP/kW | m3/min | MPa (kg/cm2G) | L×W×H (mm) | ||
| 1 | KA30 | 30/22 | 3.00 | 0.8（8) | 1,900×850×1,400 |
| 2 | KA25 | 25/18.5 | 2.50 | 0.8（8) | 1,800×800×1,370 |
| 3 | KA20 | 20/15 | 2.00 | 0.8（8) | 1,800×800×1,300 |
| 4 | KA15 | 15/11 | 1.51 | 0.8（8) | 1,640×700×1,220 |
| 5 | KA10 | 10/7.5 | 1.00 | 0.8（8) | 1,560×650×1,170 |
| 6 | KA7.5 | 7.5/5.5 | 0.67 | 0.8（8) | 1,425×560×1,050 |
| 7 | KA5.5 | 5.5/4 | 0.52 | 0.8（8) | 1,425×560×1,050 |
| 8 | KA4 | 4/3 | 0.40 | 0.8（8) | 1,310×500×960 |
| 9 | KA3 | 3/2.2 | 0.30 | 0.8（8) | 1,310×500×960 |
| 10 | KAH30 | 30/22 | 2.50 | 1.25(12.5) | 1,900×800×1,400 |
| 11 | KAH25 | 25/18.5 | 2.00 | 1.25(12.5) | 1,800×800×1,370 |
| 12 | KAH20 | 20/15 | 1.60 | 1.25(12.5) | 1,800×800×1,370 |
| 13 | KAH15 | 15/11 | 1.22 | 1.25(12.5) | 1,635×670×1,320 |
| 14 | KAH10 | 10/7.5 | 0.84 | 1.25(12.5) | 1,554×650×1,140 |
| 15 | KAH7.5 | 7.5/5.5 | 0.65 | 1.25(12.5) | 1,490×580×1,120 |
| 16 | KAH5.5 | 5.5/4 | 0.45 | 1.25(12.5) | 1,425×560×1,050 |
