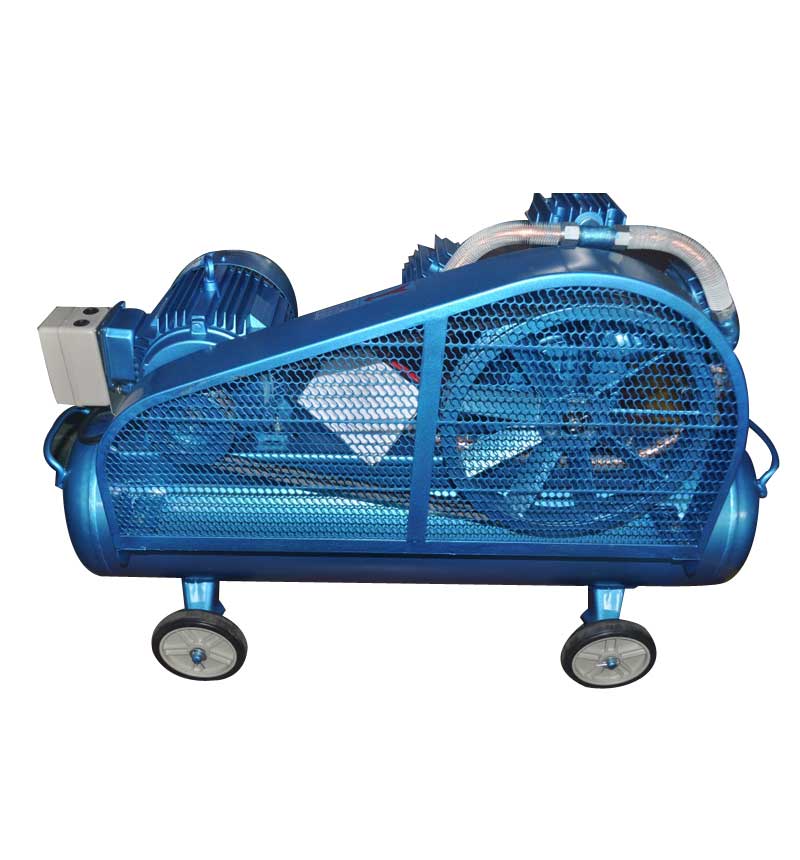

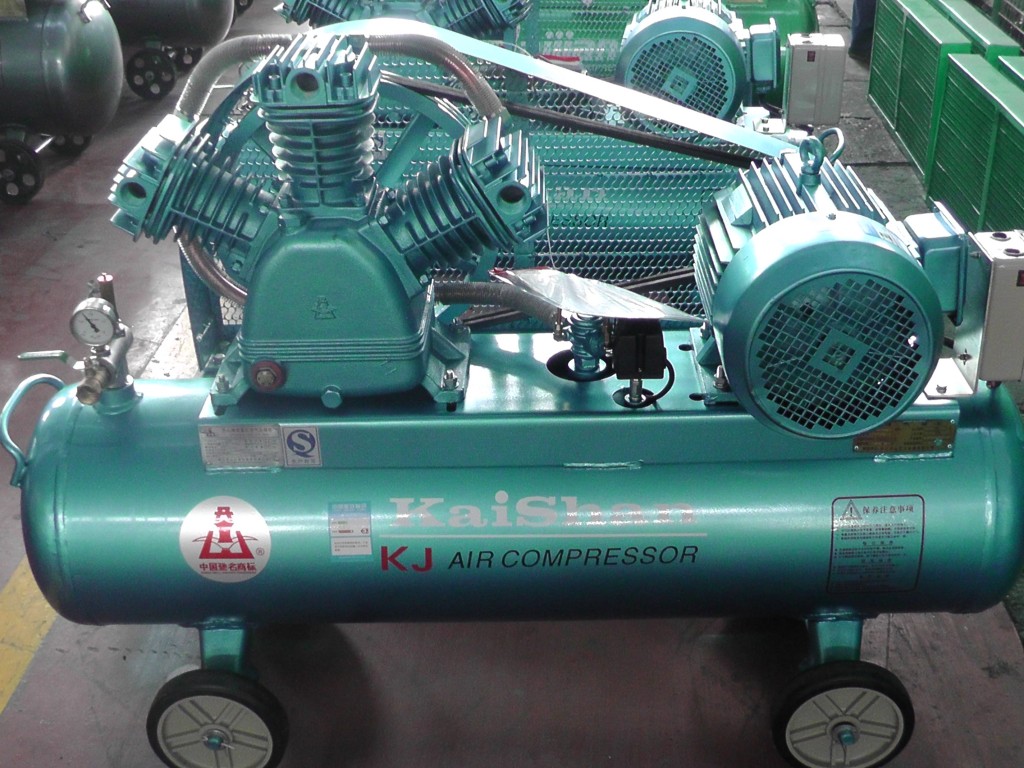

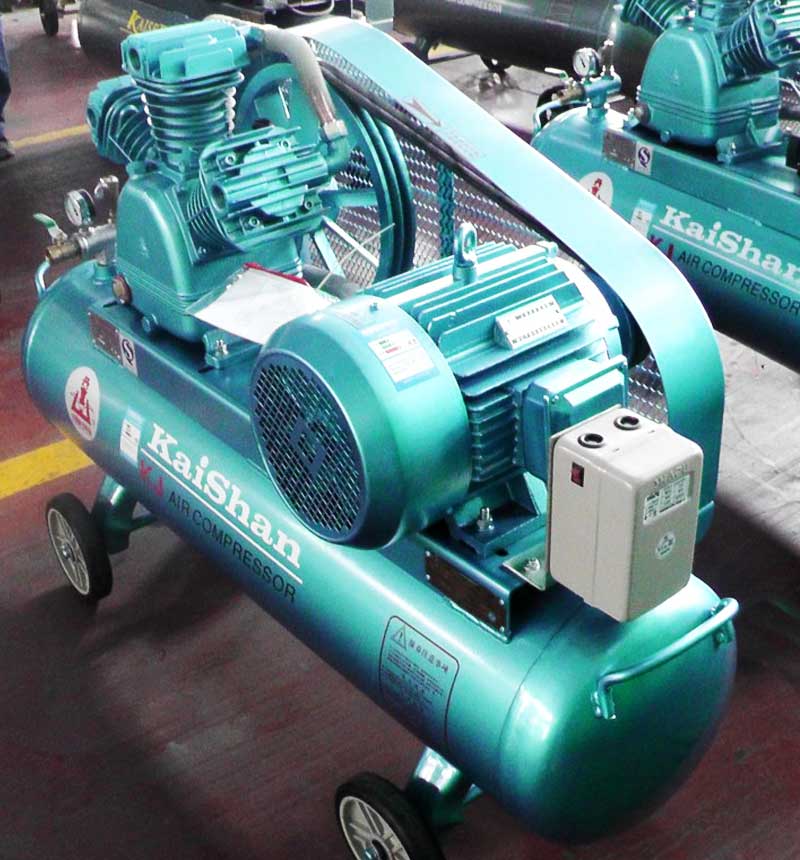

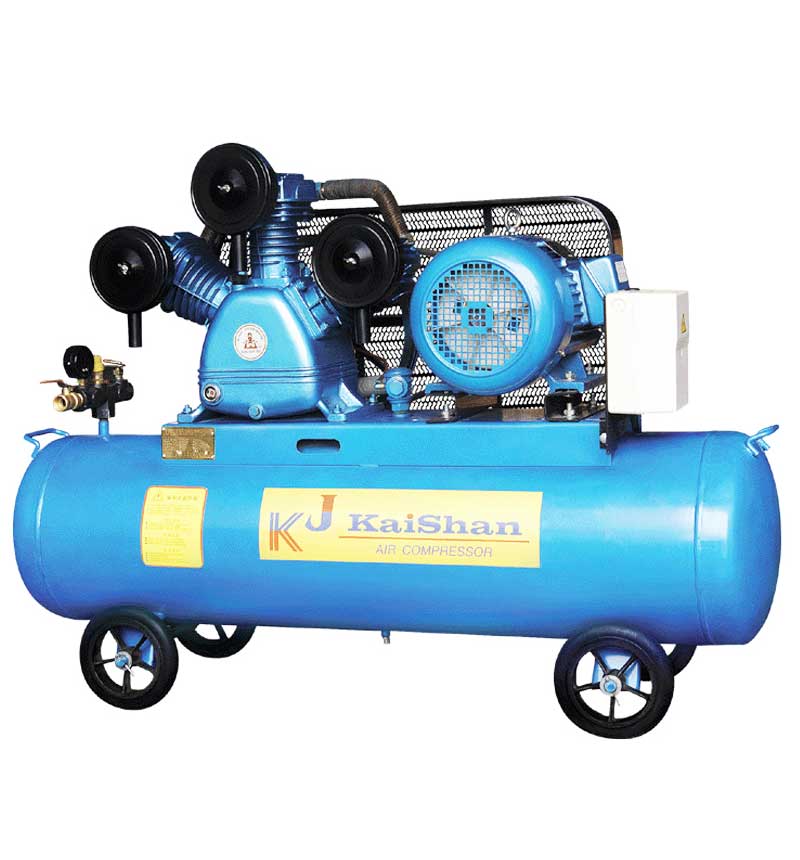

Industrial Piston Air Compressors (KJ series)
Name :Industrial Piston Air Compressors (KJ series)
Discharge pressure:0.8-1.25Mpa
Displacement:0.36-0.9M3/Min
Engine power range:3-7.5 kW
Quantities can be customized
With the most popular design available in the market, these compressors use mature technology that ensures reliability and easy maintenance.
Being small and lightweight, these compressors are easy to move.
This product’s structure is simple while its efficiency is high, thus offering a better price-performance ratio.
Such exquisitely crafted compressors use first-rate materials.
Technical Data of Industrial Piston Air Compressors (KJ series) | |||||
Serial number | Model | Engine power | Displacement | Maximum working pressure | Dimensions |
HP/kW | m3/min | MPa (kg/cm2G) | L×W×H (mm) | ||
1 | KJ100 | 10/7.5 | 0.9 | 0.8 (8) | 1,550×550×1,050 |
2 | KJ75 | 7.5/5.5 | 0.67 | 0.8 (8) | 1,550×500×1,000 |
3 | KJ40 | 4/3 | 0.36 | 0.8 (8) | 1,200×500×900 |
4 | KJH100 | 10/7.5 | 0.8 | 1.25 (12.5) | 1,550×550×1,050 |
5 | KJH75 | 7.5/5.5 | 0.6 | 1.25 (12.5) | 1,550×500×1,000 |
