1. Drilling rig with screw air compressor, no need to buy seperated air compressor.
2. Automatically install and uninstall drill pipe.
3. Operation cabin with air condition.
4. Fitted with dust collection, environmental protection.

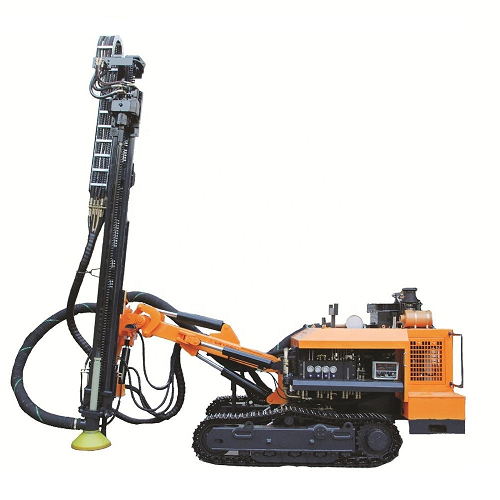

Introduction of crawler drill

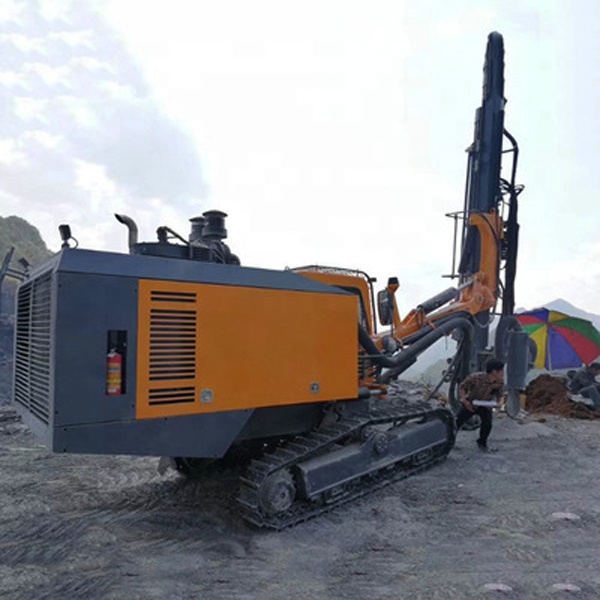

ZT10 integrated drilling rig is an advanced drill, whose drilling system and screw air compressor system are together on one machine. And it does not need to buy seprated air compressor to use. The machine fitted with six-cylinder diesel engine to provide power for the two systems. Also it is fitted with dust collection, environmental protection and energy saving,.It is suitable for open-pit mine, quarry, highway,railway, water conservancy, electric power, construction and other medium and deep hole in the stone engineering extension rod drilling operation.
| Model | ZT5 Integrated DTH Drilling Rig |
| Transport dimension(mm) | 9230*2360*3260 |
| Weight(kg) | 15000 |
| Rock hardness | f=6-20 |
| Drilling diameter(mm) | 105-130 |
| Drilling depth(m) | 32 |
| Ground clearance(mm) | 430 |
| Leveling angle of track | +10°， -10° |
| Travelling speed(km/h) | 0-3 |
| Climbing capacity | 25° |
| Traction(KN) | 120 |
| Rotary torque(Max) N.m | 2800 |
| Rotary speed(rpm) | 0-120 |
| Lift angle of boom | Up 47°, down 20° |
| Swing angle of boom | Left 20°, Right 50° |
| Swing angle of carriage | Left 35°, Right 95° |
| Tilt angle of beam | 114° |
| Compensation stroke(mm) | 1353 |
| Rotary head stroke(mm) | 4490 |
| Maximum propelling force(N) | 25000 |
| Propulsion way | Motor + roller chain |
| NO. of rods | 7+1 |
| Drilling rod(mm) | φ76*4000 |
| DTH hammer | K4 |
| Engine | YC6L310-H300(228KW/2200rpm) |
| Screw air compressor capacity(m³/min) | 18 |
| Discharge pressure(Mpa) | 1.7 |
| Travelling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-Jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V DC |
| Safe cab | Meet the requirements of ROPS & FOPS |
| Indoor noise | Below 85dB(A) |
| Seat | Adjustable |
| Air-conditioner | Standard temperature |
| Entertainment | Radio |
