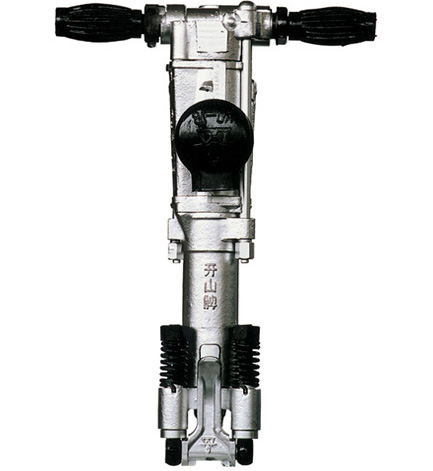

Hand-held Rock Drill
Model:YO18
pressure (MPa):0.4-0.63
Air consumption（L/Sec）:≤20
Maximum diameter(m):5
Quantities can be customized

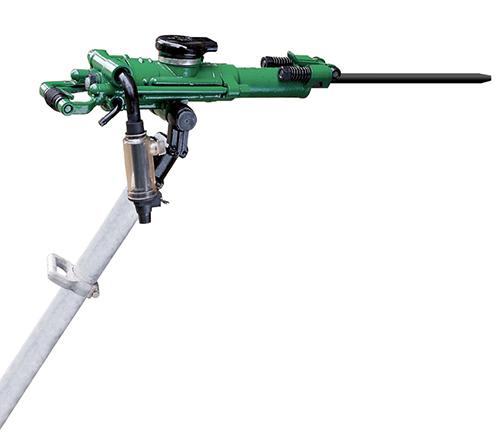

Hand-held Rock Drill are suitable for drilling primarily vertical tilting blast holes below the drilling level of medium-hard rock; they can drill blast holes in different directions at different angles after being equipped with FT-100 air leg. Holes with diameter of Φ36~42mm are drilled to the appropriate depth of 1.5~2m and the maximum depth of 5m.
| model | weight kg |
size mm |
Bore × Stroke mm |
pressure MPa |
Impact energy J |
Impact frequency HZ |
Air Consumption I/s |
| YO15 | 15 | 550 | 58×45 | 0.4-0.63 | ≥21 | ≥32 | ≤20 |
| YO18 | 18 | 550 | 58×45 | 0.4-0.63 | ≥22 | ≥32 | ≤20 |

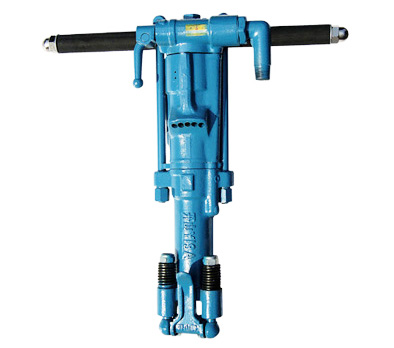

| Y19A | 19 | 600 | 65×54 | 0.4-0.3-63 | ≥28 | ≥28 | ≤37 |

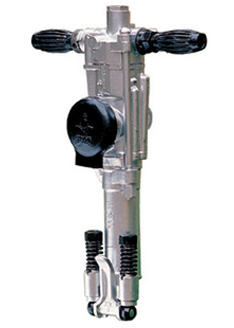

| YO20 | 20 | 561 | 63×55 | 0.4-0.63 | ≥26 | ≥33 | ≤33 |
| Y26 | 26 | 650 | 65×70 | 0.4-0.63 | ≥30 | ≥23 | ≤47 |
