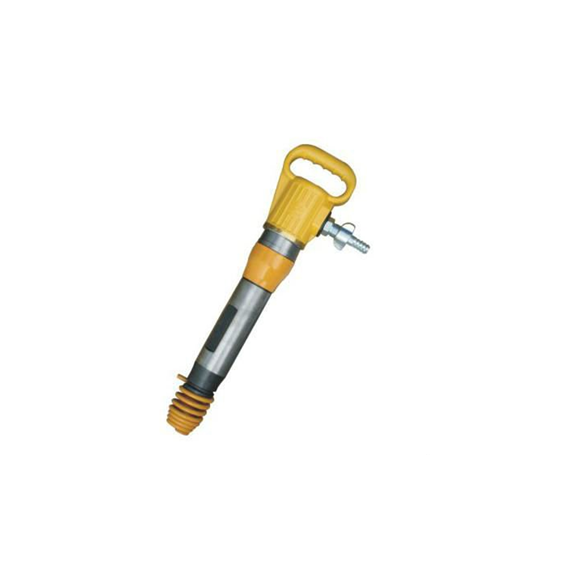

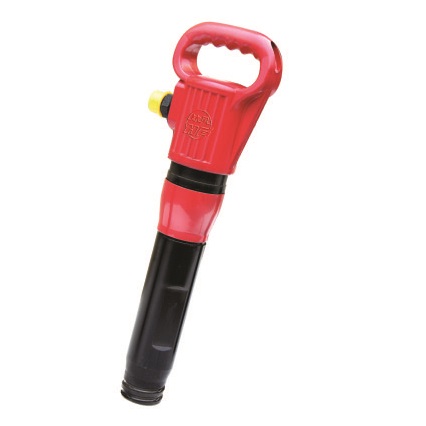

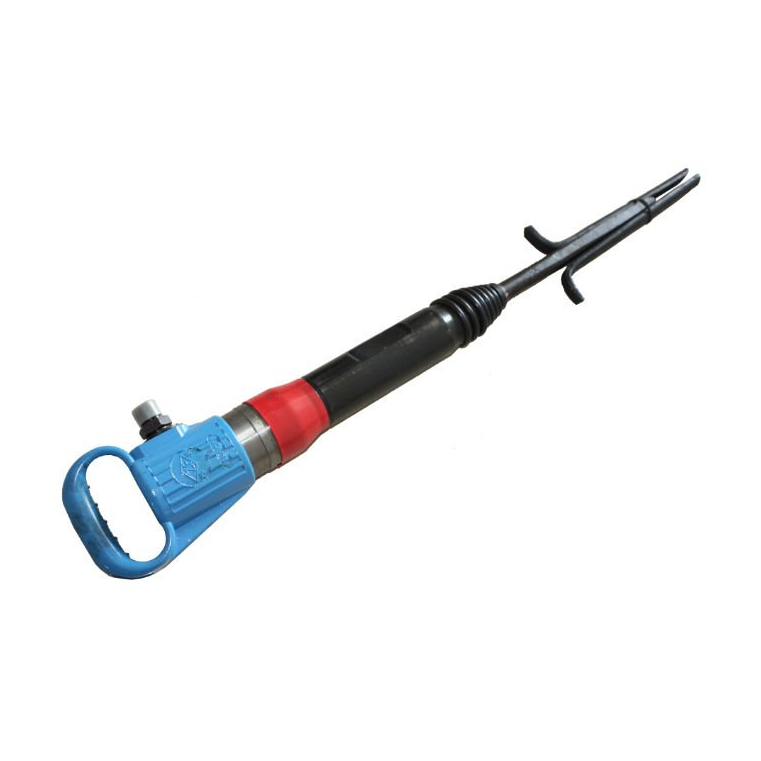

Pneumatic Pick
Product Name:Air Pick
Air pipe inner diameter:16 mm
Working pressure:0.4-0.63 MPa
Air Consumption :≤22 L/s
Quantities can be customized
Application of Pneumatic Pick:
Extensively applied for coal mining, open ditch, mining soft rocks, etc. in the crushing of old roads and original concret foundations in municipal construction and in
the coal mine industry.
Features of Pneumatic Pick:
1. Pneumatic pick hammer can be used for rock, concrete crushing operations until the objects, and building demolition, excavation pipeline construction,
mining of coal, open ditches, dig column foot pit operations.
2. Pneumatic pick hammer use compressed air as the motivation.The compressed air is distributed into both ends of the cylinder by the distributing valve alternatively. And then the steel chisel is drived into the concrete foundation to make the objects splited into pieces by the reciprocating hammer.
3. This product can be applied to mining coal in collieries, digging pits for column bases and excavating ditches.
4. In municipal construction, this product can be used to rebuild roadways, smash old pavement and destroy original concrete foundation in the process
of equipment installation in industrial and mining enterprises.
5. In mechanical industry, the product also can be employed when ballistic motion is needed.

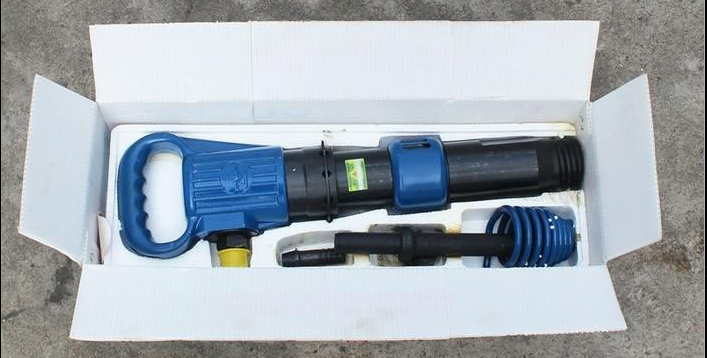

Packing of Pneumatic Pick:
Technical Parameters of Pneumatic Pick:
|
Model |
Weight (kg) |
Working pressure (MPa) |
Checking pressure (MPa) |
Impact frequency (Hz) |
Air consumption (L/s) |
|
G10 |
10 |
0.4-0.63 |
0.5 |
≤15 |
≤20 |
|
G11 |
11 |
0.4-0.63 |
0.5 |
≤15 |
≤20 |
|
G15 |
15 |
0.4-0.63 |
0.5 |
≤15 |
≤22 |
|
G20 |
20 |
0.4-0.63 |
0.5 |
≤15 |
≤20 |
|
G22 |
22 |
0.4-0.63 |
0.5 |
≤16 |
≤30 |
|
G40 |
40 |
0.4-0.63 |
0.63 |
≤17 |
≤64 |
