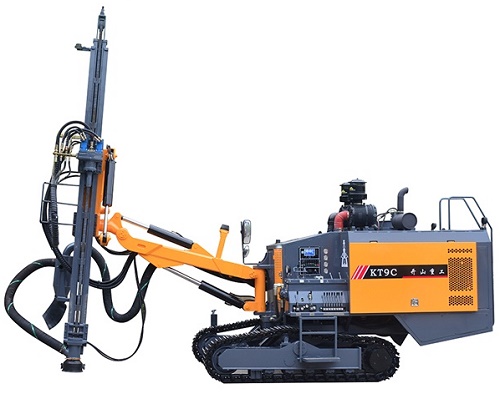

KT9C Integrated Surface DTH Drilling Rig
Drilling diamete:100-125 mm
Economic drilling depth:21 m
Displacement of screw compressor:17 m³/min
Discharge pressure of screw compressor:17 bar
Quantities can be customized

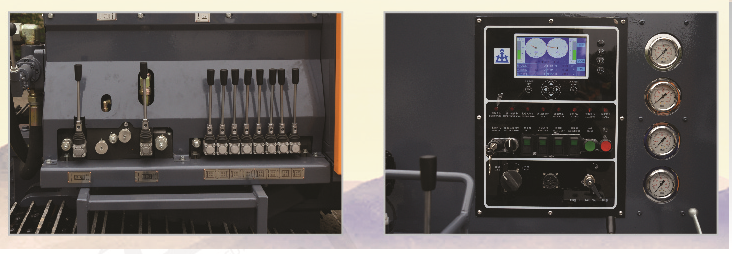

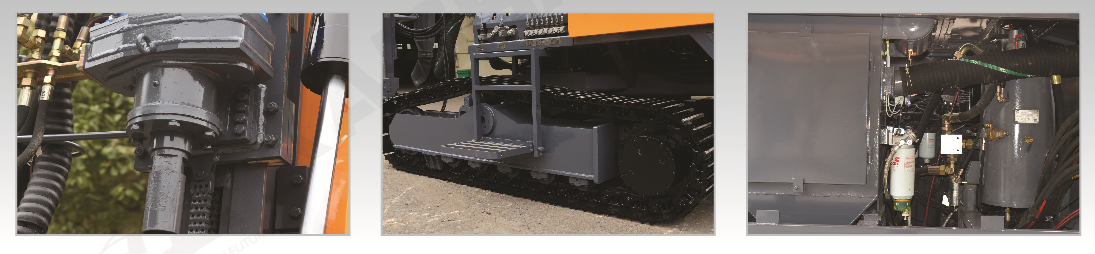

1. The overall layout is more reasonable, easy to maintain.
2. Using Cummins 6CTA8.3-260-30 diesel engine or Yuchai YCA08280-T300, big displacement and torque reserve can provide more power support in harsh environments.
3. Hydraulic use a relatively independent multi-pump system, cancel diverter valve, more stable.
4. Equiped 13/17 single-stage high-pressure compression screw system by Dr. Tang Yan, compared with mieda wind pressure interated drilling rig made by other manufacturers, it has an overwhelming advantage.
5. Using rocker - link boom system increases the luffing angle, to meet the various needs of different stations working conditions, low level of play hole; carriage arranged laterally to make work better field of vision.
6. Cylinder - plate chain propulsion system consisting of a two-speed motor and two-speed dual circulator to meet different application requirements.
7. The drilling rig is low center of gravity and balanced distribution, with heavy "Four Wheels" and there are 19 ° and automatic leveling device can be independently controlled double locking system, and the frame has a ± 10 ° automatic leveling device, walking safe and stable.
8. 8.The drilling rig equiped a high efficiency two-stage dry dust collection system, greatly improve the working environment, meets the energy saving, environmental protection concept.
Rock rigidity |
f=6-20 |
Drilling diameter |
100-125mm |
Economic drilling depth |
21 m |
Travel speed |
2.5/4.0 km/h |
Climbing capacity |
25° |
Ground clearance |
430 mm |
Total Power |
194/205 kw |
Diesel |
Cummins 6CTA8.3-260-30 or Yuchai YCA08280-T300 |
Displacement of screw compressor |
17 m³/min |
Discharge pressure of screw compressor |
17 bar |
Dimensions (long×width×high) |
8150×2260×2950/3200 mm |
Weight |
12000 kg |
Rotation speed (Two-Speed) |
0-120 r/min |
Rotary torque |
2800 N*m |
Max. feed force |
32000 N |
Boom lift |
Up57° down20° |
Guide tilt |
114° |
Lateral horizontal guide swing |
Right35°~95° |
Boom swing |
Right18° left50° |
Frame balance angle |
Up10° down10° |
Feed length at a time |
3490 mm |
Compensation length |
900 mm |
Hammer |
k4 |
Drill rod |
φ76×3000 mm |
Dust catching method |
Dry-type (hydraulic cyclonic laminar flow) |
Difference between KT9C&KT7C integrated surface DTH drilling rig
Item | KT9C | KT7C | Remark |
Power | Cummins6CTA8.3-260-30 | YuchaiYC6A260-T30 | Large displacement and torque reserve |
Guide | Lining plate reinforced carriage | Steel channel guide | Reinforced rigidity and reduced wear |
Wear reducing press plate | Single rotary motor | ||
Double rotary motor | |||
Drill boom | Drill boom system of rocker and connecting rod | Larger amplitude angle | |
Wider view | |||
Hydraulic system | Multi-pump independent system | Double pump+ flow divider | More stable |
