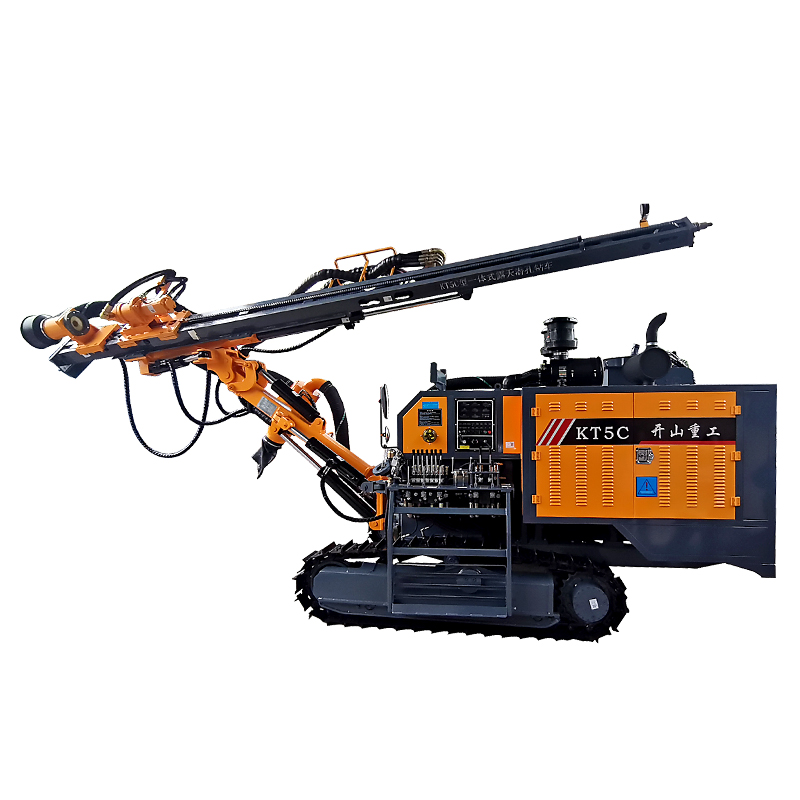

KT5C Integrated Surface DTH Drilling Rig

KT5C/YCT5 Integrated Surface DTH Drilling Rig is advanced drilling equipment integrating down-the-hole drilling system and screw air compressor system. With compact structure, it is well integrated and easy to move. It is featured by energy conservation and efficiency, safety and environmental protection, flexibility, convenient operation, and stable performance, etc.

1. The drilling rig features compact structure, it is the combination of open-air DTH drill and media wind pressure screw compressor.

2. The drill rig equipped with a single stage pressure screw air flow (10m³ / min), pressure (1.5MPa), it uses the wind pressure pneumatic drill impact, high efficiency, low energy consumption.

3. The drilling rig is low center of gravity and balanced distribution, with heavy "Four Wheels" and there are 19 ° and automatic leveling device can be independently controlled double locking system, improving the stability of the machine, to adapt to different conditions. The drill rig is equipped with two-speed travel, motor + reducer structure, to achieve the perfect combination of speed and strength.

4. Large displacement hydraulic pump is mounted directly on the engine after taking power port, simple structure can reduce the source of the failure.

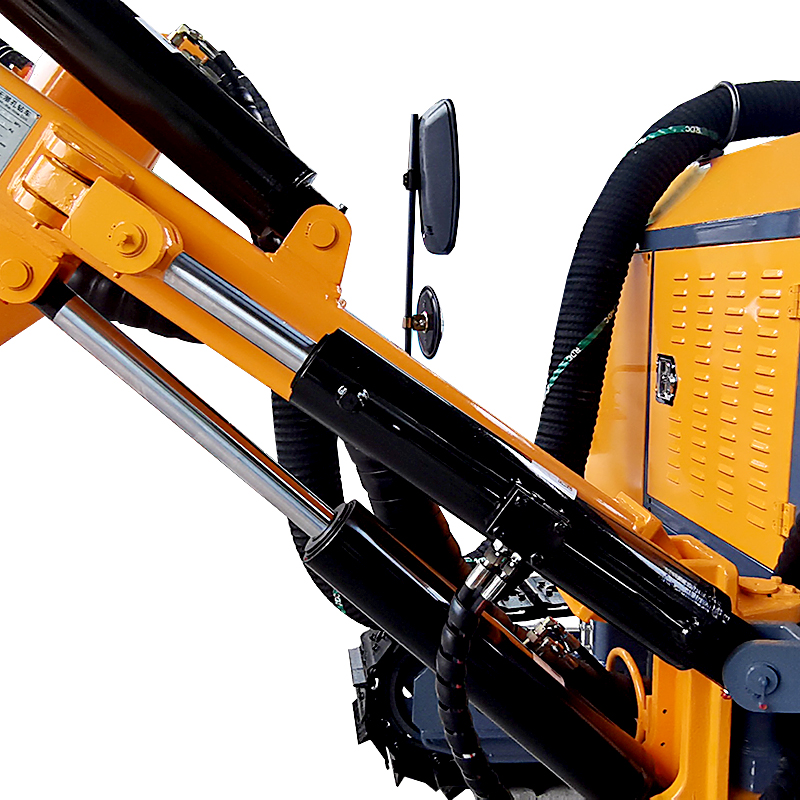

5. Drill boom luffing of large-scale systems canmeet various needs of different stations working conditions, in particular drill low level holes.

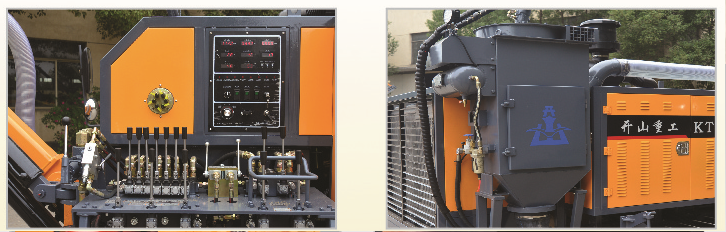

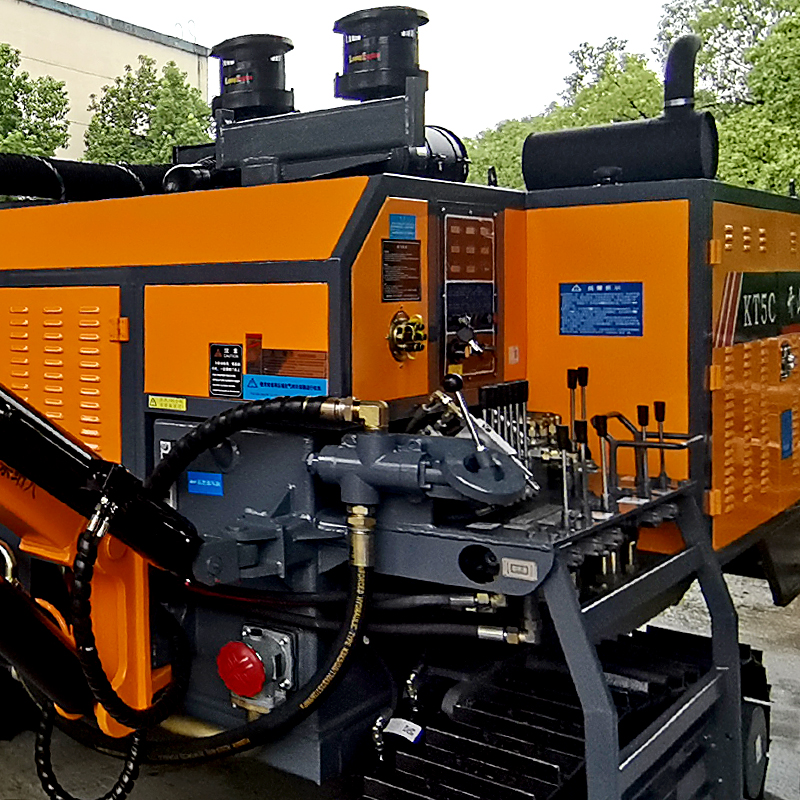

6. The highly integrated hydraulic control systems and arrangements centralized operating platform, a station will be able to freely control the entire machine.

7. The drill rig equiped rotation speed propulsion changeover valve, according to the different characteristics of the rock being drilled and different conditions, can be adjusted timely, drilling speed is fast, pore rate is high.

8. The machine is equipped with real-time monitoring system and a stable self-protection system that can accurately reflect and control the working status of the drilling rig, beyond the set range and the failure will automatically stop.

Efficient two-stage dry dust collection system, greatly improve the working environment, meets the energy saving ideas.
