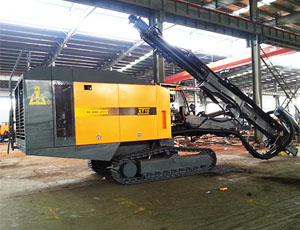

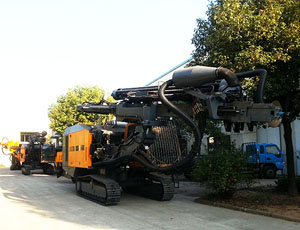

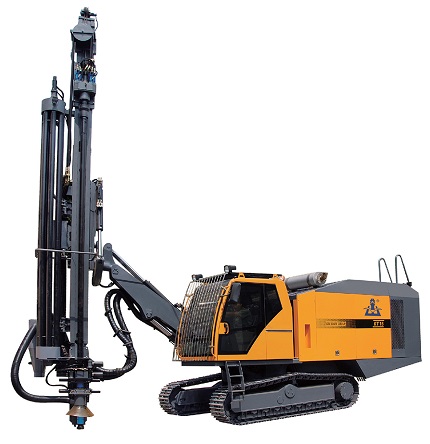

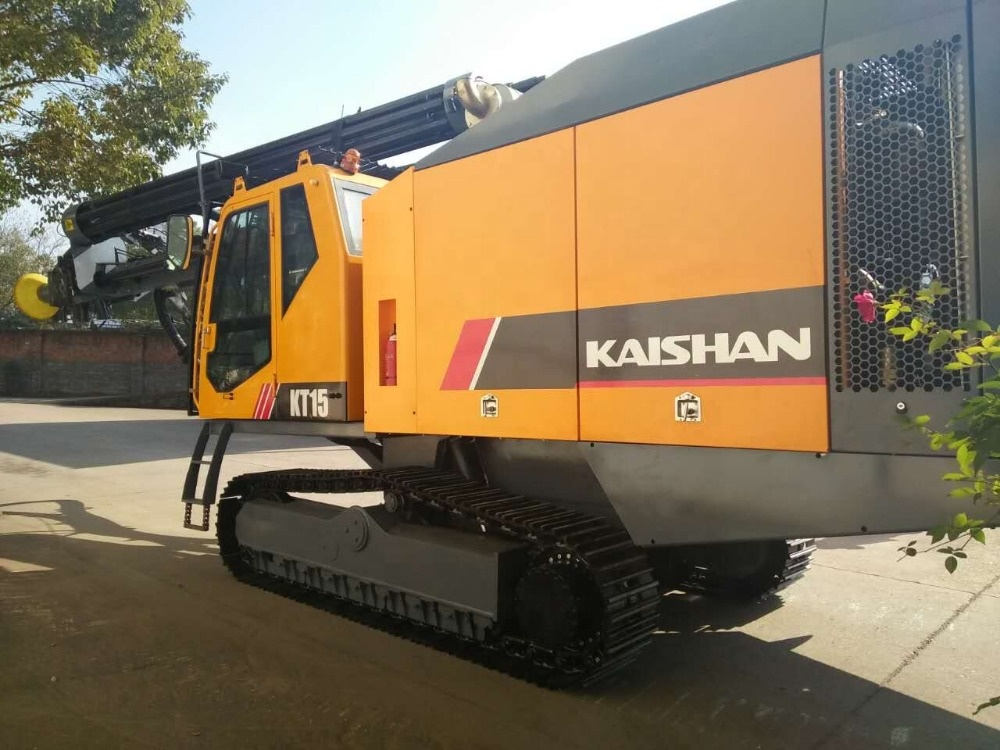

KT15 Integrated Surface DTH Drilling Rig
Drilling diameter:135-190 mm
Drilling depth(depth of automatic extension rod):35 m
Displacement of screw compressor :22 m³/min
Discharge pressure of screw compressor:25 bar
Quantities can be customized
The drilling rig is hydraulically driven to complete walking, propelling, rotation and angle adjustment with strong power.
The drilling rig is equipped with high pressure screw compressor head and high pressure pneumatic hammer to generate high drilling efficiency; it is also equipped with hydraulic dry type dust collector to collect dust, so as to reduce pollution to the environment.
The drilling rig features good integrity, high level of automation, high drilling performance, environmental protection and energy saving, easy operation, flexibility and safe driving, etc.
Feature of KT15 Integrated Surface DTH Drilling Rig:
1. Promoting a length of 5 meters, effectively reduce the loading and unloading drill pipe and other auxiliary time, improve work efficiency;
2. Disc type auto rod-loading system is used and auto rod-loading can reach the depth of 35 m.

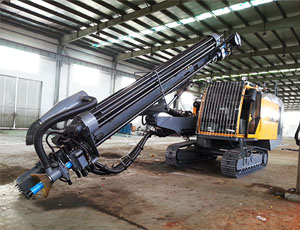

3. Equipped with amplitude mechanism, the carriage has total swing angle of 130° (97° to the right and 33° to the left) to freely complete horizontal and vertical holes transition without changing pivot. The lowest elevation horizontal hole is 550mm and the highest elevation is 4,200mm.
4. It adopts Caterpillar electronic fuel injection engine to provide high power and reliable performance.
5. High wind pressure large-displacement air compression system (22 m³/min, 20 bar) guarantees fast drilling of the hammer.
6. Automatic leveling function of the travelling mechanism enables the drilling rig to be more adapted to rugged mountain roads in the mine.
7. Double rod lifting mechanism guides the rig all the way to prevent deflection in the drilling process (It guides the hammer during trepanning and the drill rod during drilling).
8. The drilling rig adopts imported hydraulic parts and electric appliance.

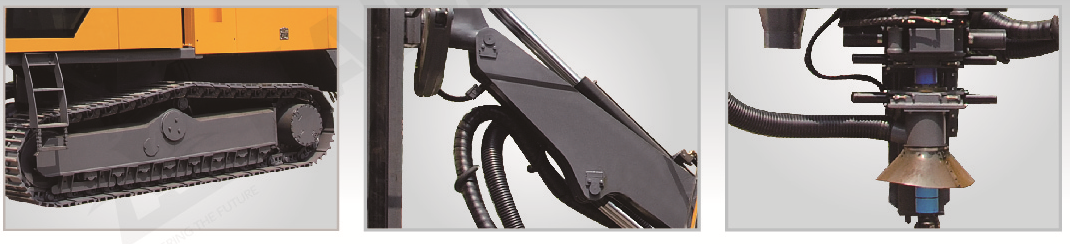

Detail Image

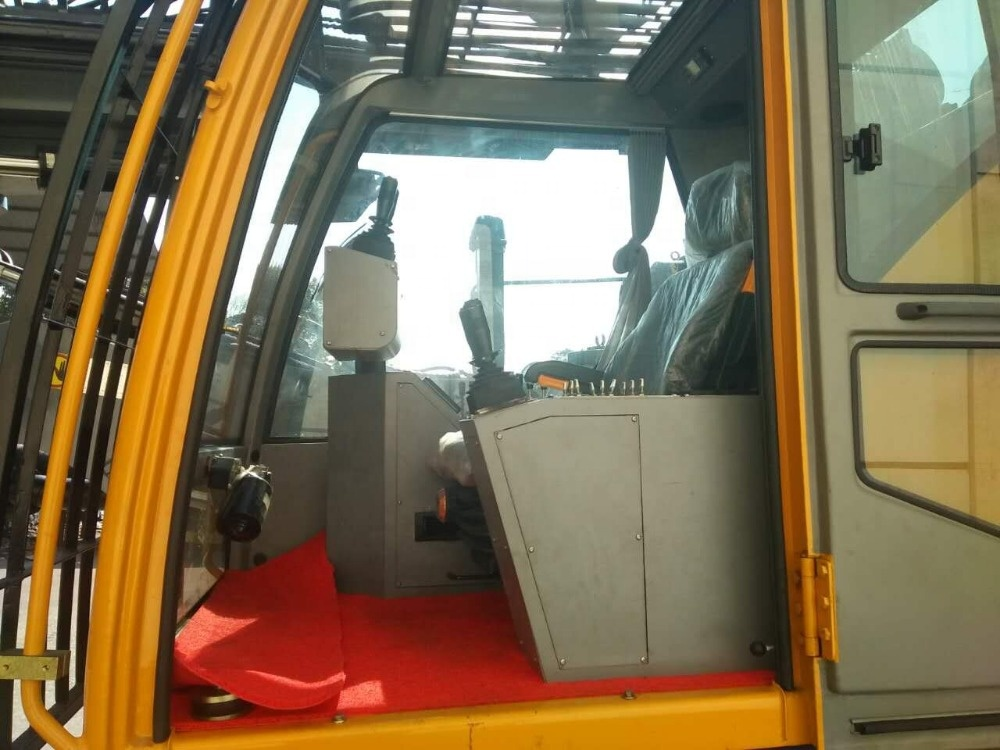

The cab
Rock rigidity |
f=6-20 |
Drilling diameter |
135-190mm |
Drilling depth(depth of automatic extension rod) |
35m |
Travel speed |
3.0km/h |
Climbing capacity |
25° |
Ground clearance |
430mm |
Total Power |
298kw |
Diesel |
CumminsQSZ13-C400 |
Displacement of screw compressor |
22 m³/min |
Discharge pressure of screw compressor |
20 bar |
Dimensions (long×width×high) |
11500×2716×3540mm |
Weight |
23000kg |
Rotation speed |
0-118r/min |
Rotary torque |
4100N*m |
Max. feed force |
65000N |
Guide tilt |
125° |
Guide swing |
Right97° left33° |
Boom swing |
Right42° left15° |
Frame balance angle |
Up10° down10° |
Feed length at a time |
5000mm |
Compensation length |
1800mm |
Hammer |
K5/K6 |
Drill rod(φDiameter×Drill rod length) |
φ89×5000/φ102×5000mm |
Dust catching method |
Dry (hydraulic cyclonic laminar flow)/wet (optional) |
Rod loading method |
Automatic unloading rod |
Automatic anti-sticking method |
Electro-hydraulic control anti-sticking |
Lubrication method of drill rod |
Automatic oil injection and lubrication |
Drilling rod thread protection |
Equipped with float joint to protect the drill rod thread |
Drilling display |
Real-time display of drilling angle and depth |
