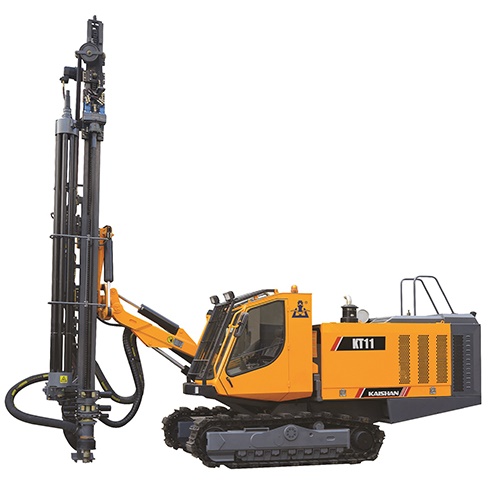

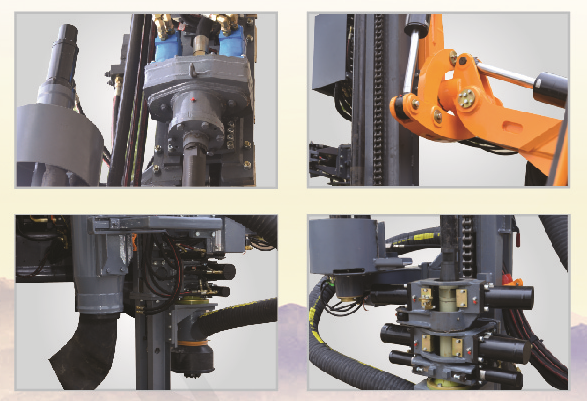

KT11 Integrated Surface DTH Drilling Rig
Drilling diameter(mm):100-140
Economic drilling depth (m):32
Displacement of screw compressor (m³/min):18
Discharge pressure of screw compressor(bar):18
Quantities can be customized
|
Rock rigidity |
f=6-20 |
Guide tilt |
114° |
|
Drilling diameter(mm) |
100-150 |
Boom lifting |
Up47° down20° |
|
Economic drilling depth (m) |
32 |
Swing angle of carriage |
Right95° left35° |
|
Travel speed (km/h) |
0-4 |
Boom swing |
Right50° left21° |
|
Climbing capacity |
25° |
Frame balance angle |
Up10° down10° |
|
Ground clearance(mm) |
420 |
Feed length (mm) |
4490 |
|
Total Power (kw) |
242 |
Compensation length(mm) |
1353 |
|
Diesel |
Cummins QSL8.9-C325 |
Drill rod |
φ76x4000mm |
|
Displacement of screw compressor (m³/min) |
18 |
Dust catching method |
Dry-type (hydraulically driven whirlwind layer flow type) |
|
Discharge pressure of screw compressor(bar) |
18 |
Rod loading method |
Auto rod-loading |
|
Dimensions (long×width×high)(mm) |
9100x2520x3600 |
Automatic anti-sticking method |
Electro-hydraulic control to prevent sticking |
|
Weight(kg) |
15500 |
Lubrication method of drill rod |
Automatic splash lubrication |
|
Rotary speed(r/min) |
0-120 |
Drill rod thread protection |
Equipped with float joint to protect the drill rod thread |
|
Rotary torque N*m |
2800 |
Drill hole angle display |
2D electronic angle display |
|
Max. feed force N |
25000 |
Drill hole depth display |
Electronic hole depth display |
|
Hammer |
K4 |
|
|
