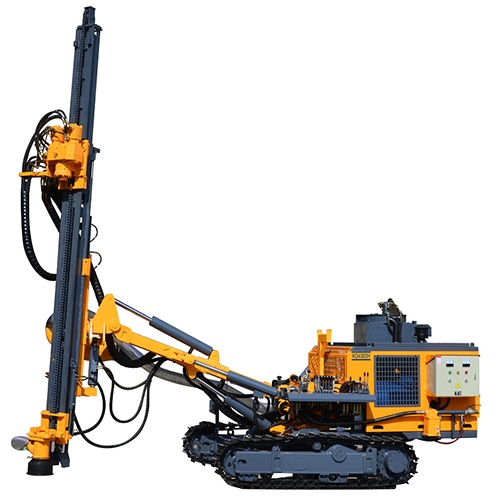

KG430S/KG430SH DTH Drilling Rig
Dia. Of Hole:φ90-152mm
Drilling depth:25m
Working pressure:1.0-2.4Mpa
Air consumption :13-20 m³/min
Quantities can be customized

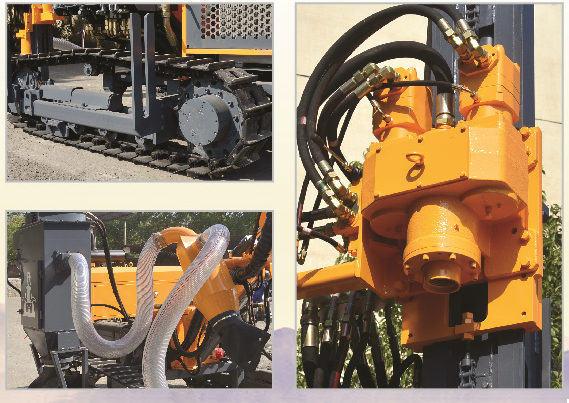

KG430S/KG430SH DTH Drilling Rig, optimize and upgrade the hydraulic system, carriage parts, walking components,faster rotation speed and advancing speed,better reliability.
Application of KG430S drilling rig
1. Portable Pneumatic Crawler Drilling Rig are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine and deep hole joint pipe drill work on the building project etc.
2. KG430S crawler drilling rig with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes .
Features & benefits
Hydraulic tramming, positioning and feeding system
Equipped with diesel engine and motor operations
Equipped with hydraulic system, making it efficient
Compact rugged crawler
Application of KG430S drilling rig
1. Portable Pneumatic Crawler Drilling Rig are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine and deep hole joint pipe drill work on the building project etc.
2. KG430S crawler drilling rig with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes .
Features & benefits
Hydraulic tramming, positioning and feeding system
Equipped with diesel engine and motor operations
Equipped with hydraulic system, making it efficient
Compact rugged crawler
Technical Parameters of KG430S Semi-hydraulic Surface DTH Drilling Rig
| KG940A Semi-hydraulic Surface DTH Drilling Rig | |
| Model | KG430S |
| Rock rigidity | f=6-20 |
| Dia. Of Hole | φ90-152mm |
| Drilling depth | 25m |
| Rotation speed | 0-90rpm |
| Rotation torque | 5000N.m |
| Lifting capacity | 40000N |
| Feeding method | Oil cylinder&roller chain |
| Traveling speed | 0-2.5KM/H |
| Climb ability | ≤30° |
| Ground clearance | 515mm |
| Total Weight | 6000KG |
| Dimension (mm) | 670X2200*2700 |
| Tilt angle of Beam | DOWN: 135°， UP: 35° |
| Swing angle of boom | L: 91°, R: 5° |
| Drill boom(arm) pitch angle | UP:15°, DOWN:55° |
| Drill boom(arm) swing angle | L.:45° R.:45° |
| Carriage Compensation | 900mm |
| Engine | YC4DK80-T302(58KW 2200r/min) |
| Drill rod specification | φ76*2000mm |
| Working pressure | 1.0-2.4Mpa |
| Air consumption | 13-20 m³/min |
