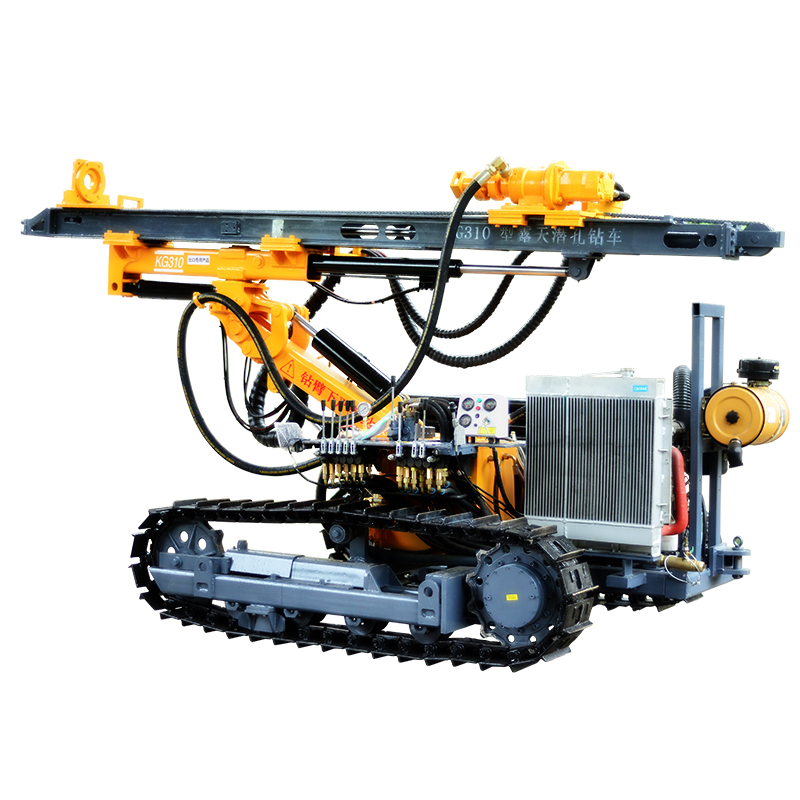

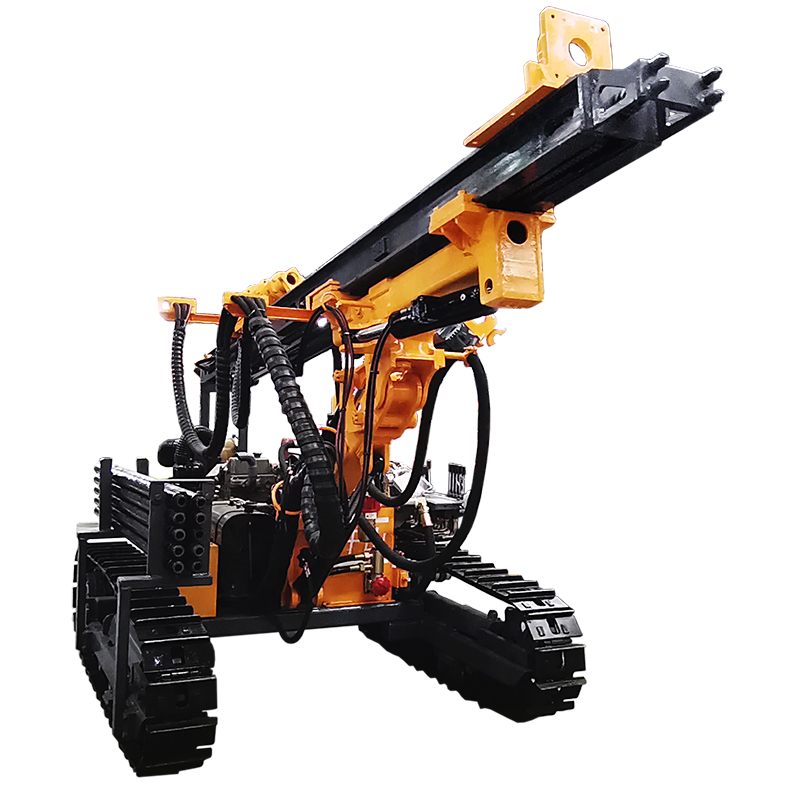

KG310 Crawler DTH Mining Drilling Rig
Dia.of hole:φ80-105mm
Drilling depth:20m
Worklig pressure:7-14 bar
Air consumption:7-15 m³/min
Quantities can be customized
KG310 Crawler Engineering Geology Drilling Machine/Mini Portable Tractor Blast Hole Drill Rig
1. Application of KG310 Crawler Engineering Geology DTH Mining Drilling Rig
Portable rock drilling machine is used to drill blasting holes like small to medium mining projects,national defense projects,road construction and etc.
2. Advantage of KG310 Crawler Engineering Geology DTH Mining Drilling Rig
(1) Easy operation and high efficiency as the hydraulic feeding be taken.
(2) As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relift.
(3) The pressure indicator of bottom hole can observe and control the well conditions easily.

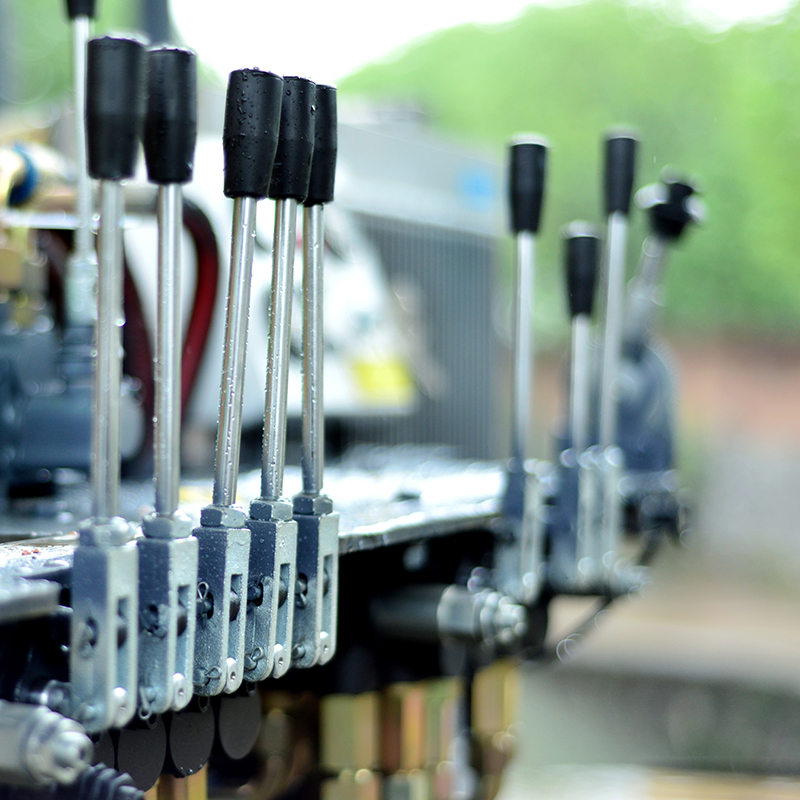

(4) Close levers, convenient to operate.
(5) Compact size and light in weight are easy to set up and transport on working plains and mountain area.
1. Application of KG310 Crawler Engineering Geology DTH Mining Drilling Rig
Portable rock drilling machine is used to drill blasting holes like small to medium mining projects,national defense projects,road construction and etc.
2. Advantage of KG310 Crawler Engineering Geology DTH Mining Drilling Rig
(1) Easy operation and high efficiency as the hydraulic feeding be taken.
(2) As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relift.
(3) The pressure indicator of bottom hole can observe and control the well conditions easily.
(4) Close levers, convenient to operate.
(5) Compact size and light in weight are easy to set up and transport on working plains and mountain area.
| 1 | Rock rigidity | F=6-20 |
| 2 | Diameter of hole | Φ80-105mm |
| 3 | Optium drilling depth | 20m |
| 4 | Rotation speed | 0-110r/min |
| 5 | Lift power | 18 KN |
| 6 | Feed method | Oil cylinder+leaf chain |
| 7 | Feed stroke | 2670mm |
| 8 | Walk speed | 0-2.0 km/h |
| 9 | Climbing ability | ≤30° |
| 10 | Ground clearance | 250mm |
| 11 | Weight | 4000kg |
| 12 | Dimension | 4650*2000*2200mm |
| 13 | Tilt angle of Beam | 190° |
| 14 | Swing angle of boom | 145° |
| 15 | Drill boom pitch angle | -50°~+25° |
| 16 | Sliding carriage suppling length | 900mm |

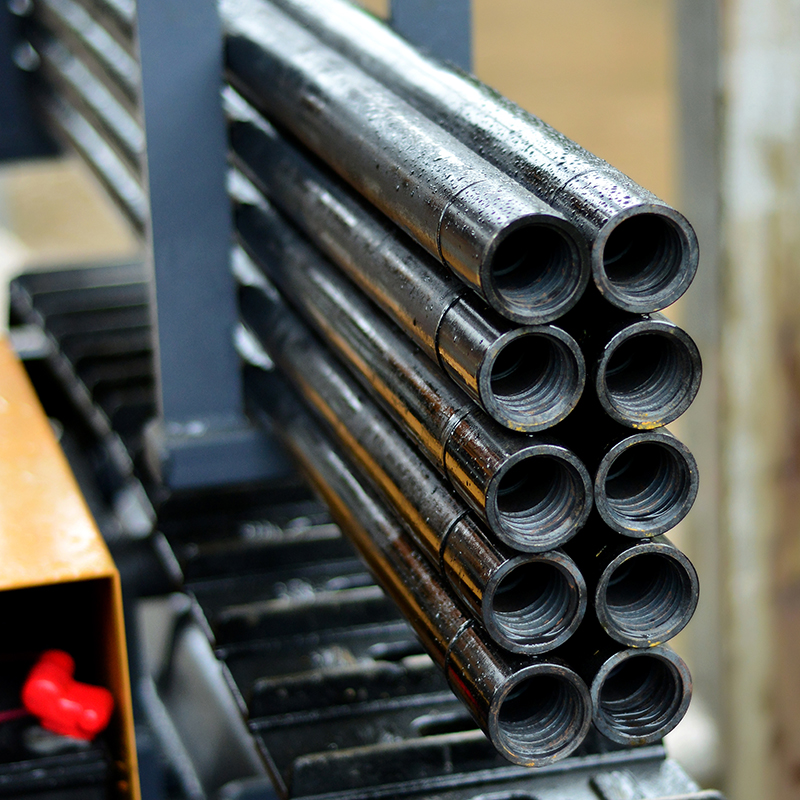

| 17 | Drill pipe | Φ60×2000 |
| 18 | Supporting power | Yuchai YCCA13T6-45(33.1KW/2400r/min) |
| 19 | Air consumption | 7-15 m³/min |
| 20 | DTH hammer | L3 |
| 21 | Maximum height of horizontal hole | 2650mm |
| 22 | Minimum height of horizontal hole | 360mm |
