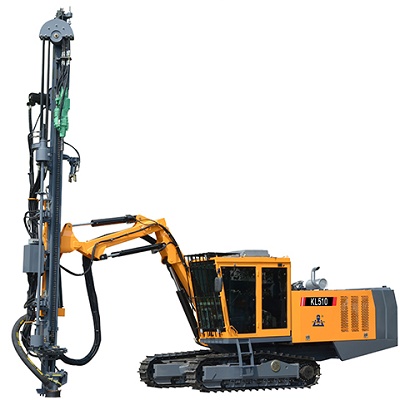

KL510 All-hydraulic Open Air DTH Drilling Rig
Transport dimension :10500*2450*3200mm
Weight :16500kg
Depth of economical drilling:25m
Drilling diameter:64-115mm
Quantities can be customized
KL510 equipped with heavy-duty hydraulic top hammer drill (24 KW). With its powerful rotary torque impact power, Match enough washing ability and advanced control system, make it is fully capable of in complex strata conditions exert its performance.
It is with 0-180°rotating ability of drilling rig’s frame, make a positioning drill coverage, greatly improve the efficiency of the rig's arrangement of holes and the ability to deal with complicated working condition.
Drilling rig adopted high efficiency Kaishan brand screw air compressor , environmental protection and energy saving, with completely independent intellectual property rights.
Drilling rig's power unit cross at the end of the upper rotary frame, as opposed to the drill arm and push beam. No matter drill arm and push beam in any direction all have the effect of mutual balance.
Drilling rig's motion, crawler levelling and frame rotary can optional wireless remote control to operate outside the cab.
Dimension and Weight | Transport dimension | 10500*2450*3200mm |
Weight | 16500kg | |
Articulated dril boom and chassis | Ground clearance | 430mm |
Track leveling angle | 10°up, 10°down | |
Driving speed | 0-3.5km/h | |
Grade Ability | 30° | |
tractive force | 120KN | |
Power unint | Diesel engine | Cummins QSC8.3-C240-30 |
Cylinder quantity | 6 | |
Output Power | 179KW/2200rpm | |
Drive type | Front-rear output | |
Hydraulic pump | 2×variable piston pump+2×gear pump | |
Screw air compressor | Zhejiang Kaishan | |
Air displacement | 8.5m³/min | |
Working pressure | 10bar | |
Oil Tank | 340L | |
Dust collector system | Dust collector ability and vacuum degree | 20m³/min;1000mm water column |
Filter element/Material | 8pcs/Fiber | |
Filter area | 7m² | |
Hydraulic motor power | 7.5kw | |
Hydraulic Rock Drill | Model | HC95LQa |
Impact power | 24kW | |
Max. impact pressure | 180-200bar | |
Impact frequency | 48-57Hz | |
Max. torque | 955Nm | |
Max. rotary pressure | 210bar | |
Max. rotary speed | 150rpm | |
Shank lubrication | Air/Oil mist | |
lubricating oil consumption | 15 drops/min | |
Drilling Diameter | 64-115mm | |
Hydraulic System | Driving, drilling | load sensing |
Filter Precision | 10μm | |
Cooling ability | Ambient temperature:+50° | |
Hydraulic oil tank | 250L | |
Drill boom, advancing beam and rod changer | Lifting of drill boom | 94° |
swing of drill boom | -18°/50° | |
Lifting of folding boom | 120° | |
Carriage swing angle | -93°/20°; -20°/94° | |
Carriage inclination angle | 120° | |
Compensation length | 1353mm | |
Rock drill stroke | 4150mm | |
Max. propulsion Force | 19KN | |
Propulsion way | Motor - roller chain | |
Economic drilling depth | 25m | |
Drill rod quantity | 6+1 | |
Drill rod model | T45/T38*3660 | |
Drill rod thread lubricating | Standard | |
Control System | Driving control | Hydraulic pilot |
Drill boom control | Hydraulic direct control | |
Drilling control | Pilot control (Electric/Hydraulic) | |
Hole control | Stepless | |
Impact control | Control of shock pressure | |
Anti-jamming | Electric/Hydraulic | |
Voltage | 24V, DC | |
Cab | Safty cab | Meet the requirements of FOPS and ROPS |
Indoor Noise level | <85dB(A) | |
Control function | Drilling, travelling, movement of drill boom and rod changer | |
Seat | Adjustable | |
Air conditioner | Standard temperature | |
Entertainment | Radio+MP3 |
