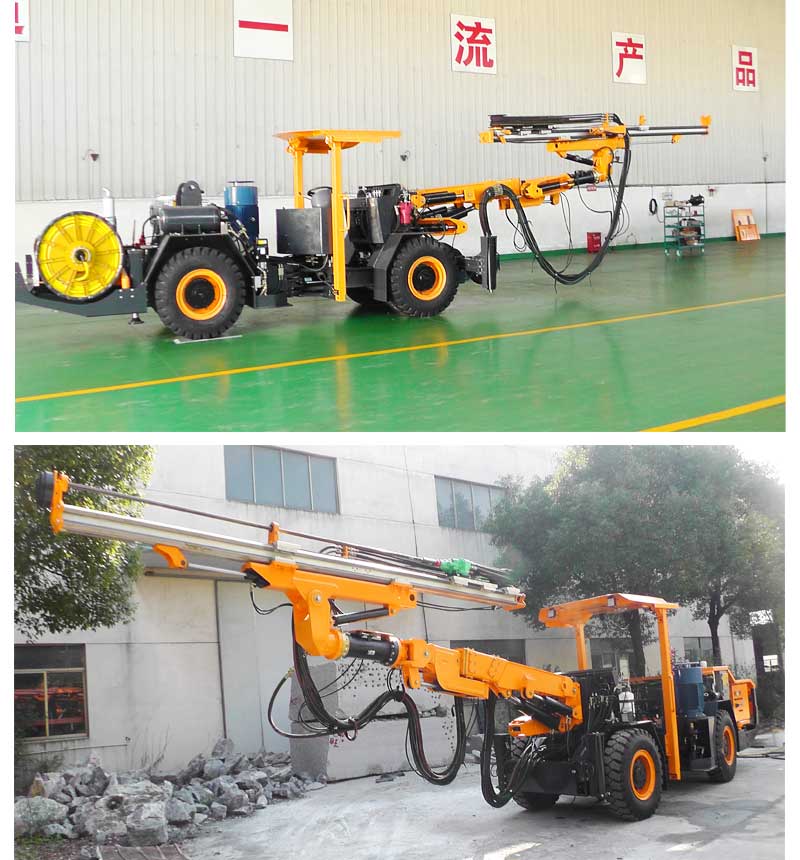

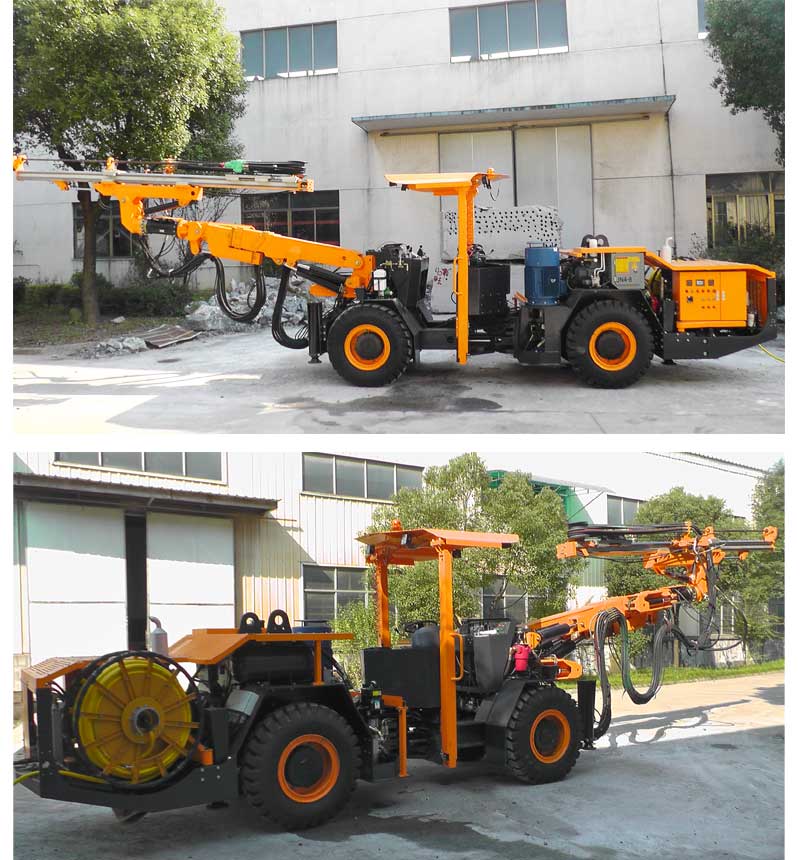

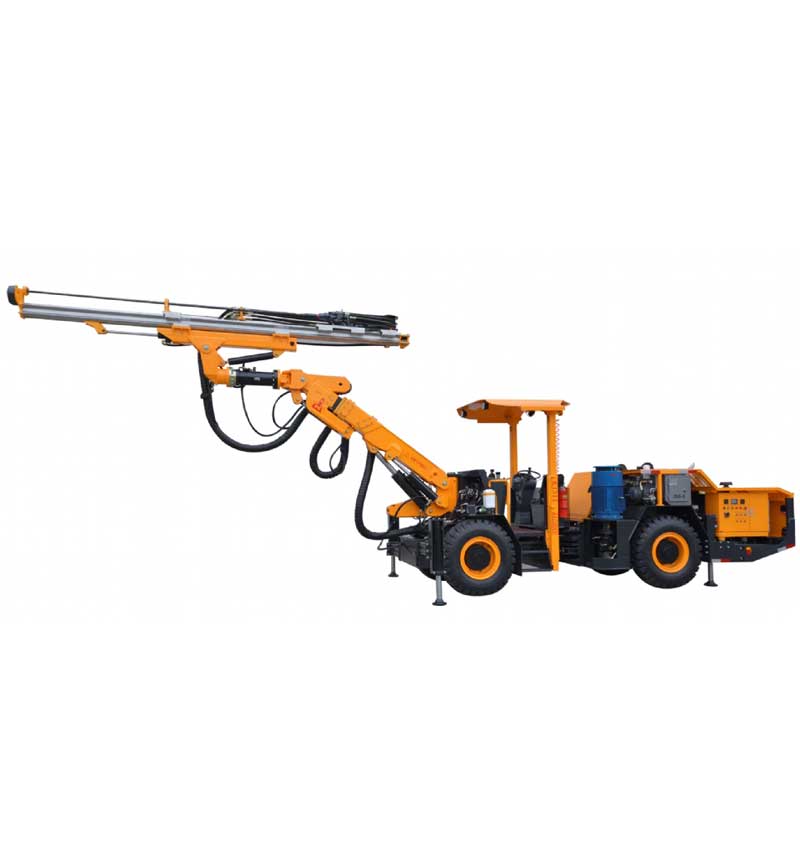

KJ311 All-hydraulic Tunneling Jumbo Drilling Rig
Length :11300mm
Width :1750mm
Height :2000/3000 mm
Weight :About 12000 kg
Quantities can be customized
1. KJ311 is a hydraulic drifting jumbo designed for 12-35 m2 cross section in underground mining operations.
2. Robust universal drilling boom creates ideal face drilling coverage. Automatic parallelism and 360o roll-over enable easy, fast and accurate positioning for face drilling, sideway drilling and bolt hole drilling.
3. The layout of components provides excellent vision for the operator in drilling and travelling.Powerful and well balanced wheel drive chassis allows the rig to move through limited space and tough terrain in the mines. Duo-circuit service brake and enclosed multi-disc parking/ emergency brake ensure safety in tramming and on ramp slope.
4. Field proven high frequency hydraulic drifter delivers high performance. Trapezoid shaped percussion piston optimizes shock
wave transfer efficiency, enhancing penetration and decrease drilling consumables costs.
5. Comfortable operator station provides safe working condition. Many automatic features simplified the drilling control and
helps the miners to concentrate on fast and accurate drilling.
6. All service points are easily accessible, which simplifies daily routine maintenance.
Dimension and Weight | |||
Length | 11300mm | ||
Width | 1750mm | ||
Height | 2000/3000 mm | ||
Weight | About 12000 kg | ||
Walking Speed,Horizontal | 10 km/h | ||
Grade ability | 0.25 | ||
Protection | |||
Noise level | <100 dB(A) | ||
Adjustable safety canopy | POPS +ROPS | ||
Drilling System | |||
Drifter | 1×HC50/R38 | 1×HC109/R38 | |
Weight | 112KG | 151KG | |
Percussion power | 13kW | 18.8kW | |
Percussion Flow | 105L/min | 135L/min | |
Percussion power | 130bar | 135bar | |
Rotation pressure | 150bar | 150bar | |
Frequency | 62 Hz | 47 Hz | |
Rotation torque | 325Nm | 780Nm | |
Hole Dia. | 32-89mm | 45-102mm | |
One Hole Drilling Time | 87.5s | ||
Rod Size | R38-H35-R32 | ||
