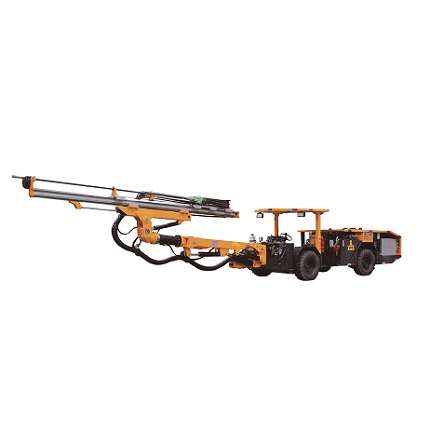

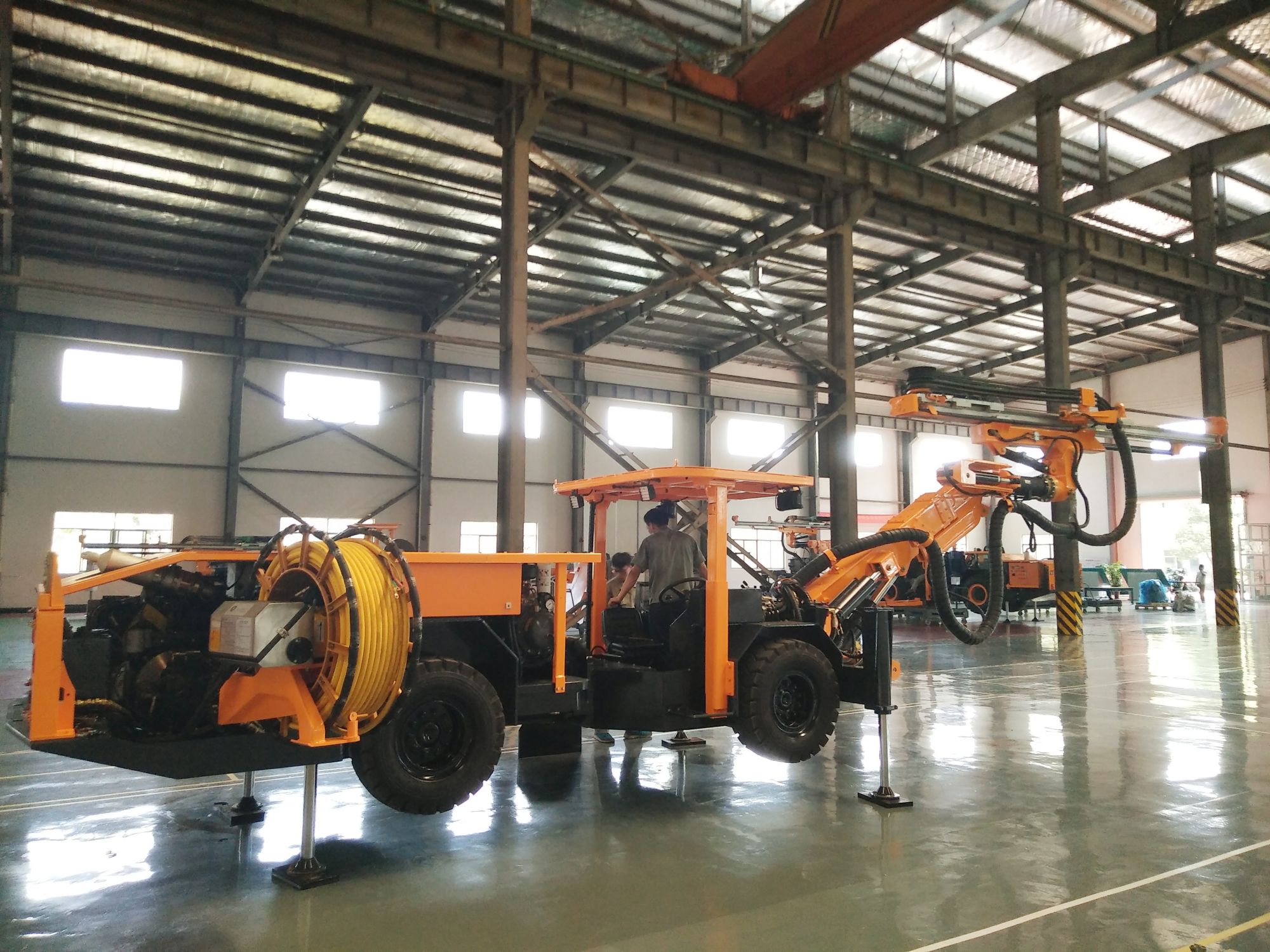

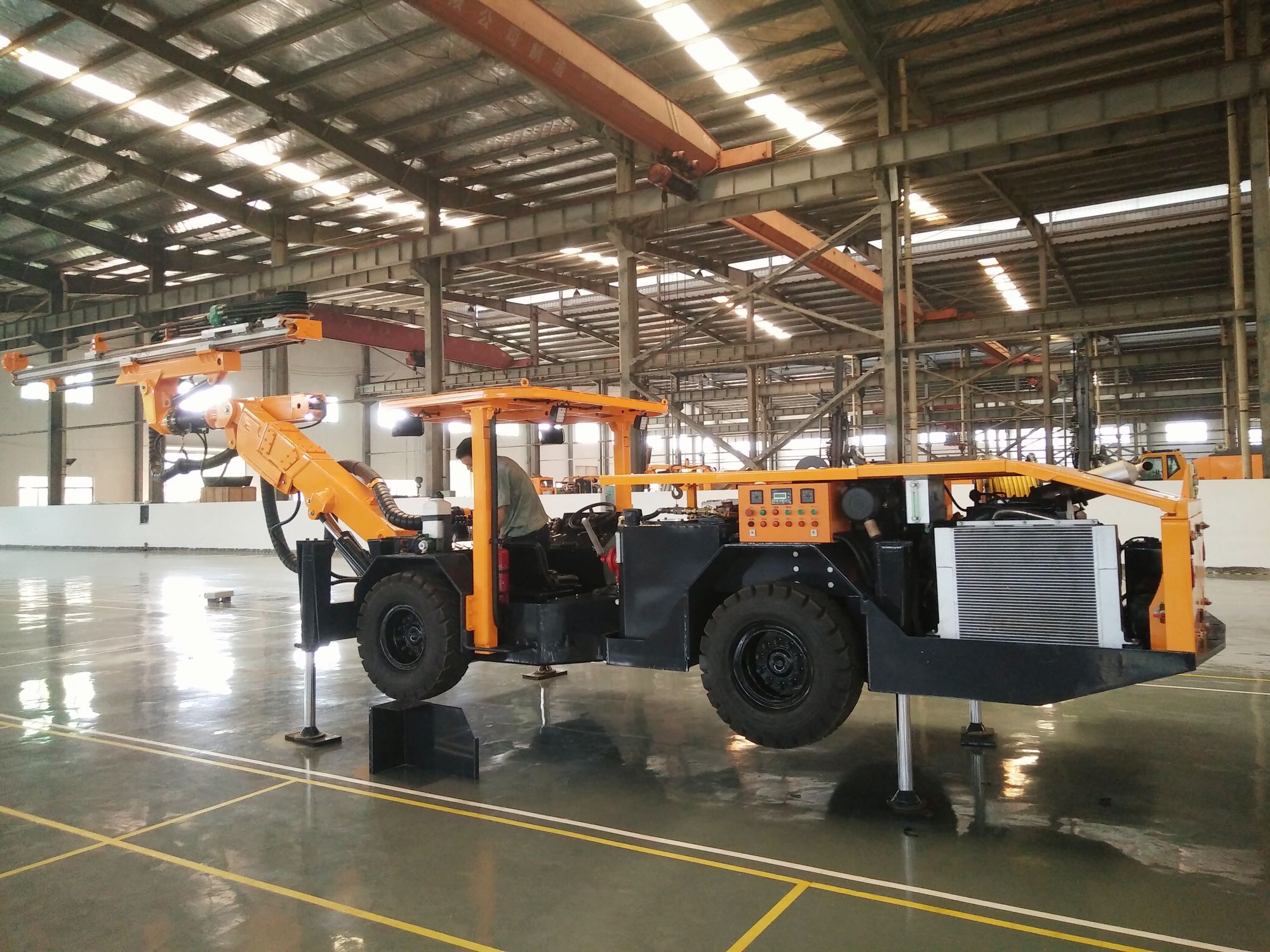

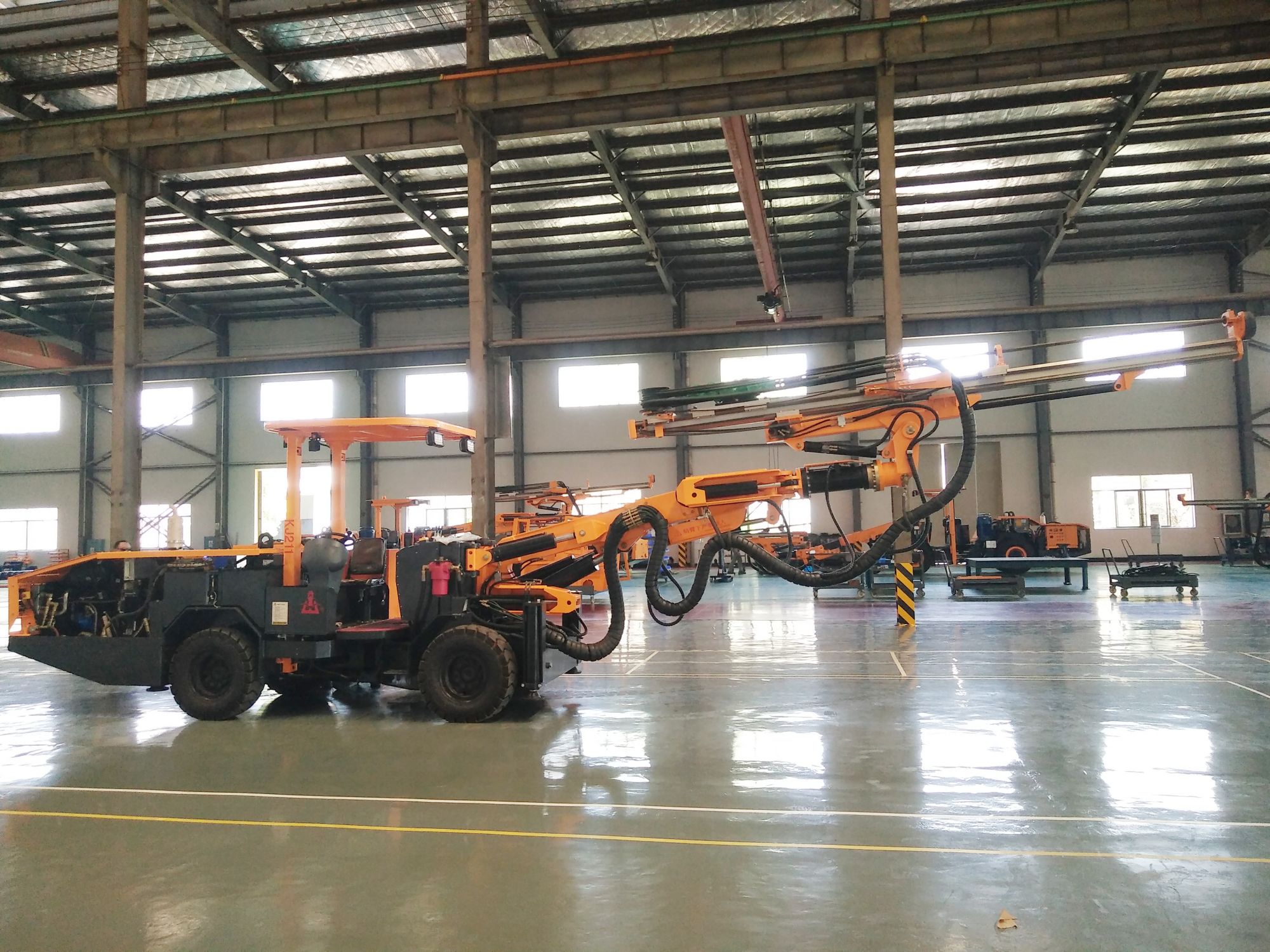

KJ310 All-hydraulic Tunneling Jumbo Drilling Rig
Length:11160 mm
Width:2000 mm
Height:1465/1985 mm
Weight:11000 kg
Quantities can be customized
Its firm and reliable universal big arm has the best shape of section coverage, boosting the 360° overturn and automatic leveling of the beam for rapid and convenient borehole positioning. The big arm can also be used for lateral cross hole opening and anchor rod boring operations.
The arrangement of the jumbo ensures the good view of the operator.
Evenly-arranged and powerful 4-wheel drive hinge chassis ensures flexible, quick and safe driving in a narrow roadway.
The high-frequency percussion rock driller uses the cascaded piston to optimize the efficiency of shock wave transmission, raise the drilling speed, reduce clamping bit consumption and enhance the soundness of device.
The big space of operation and a series of automatic functions can help the driver to concentrate their attention to safe, rapid and accurate tunneling.
All its repair and maintenance parts have been protected well, and its repair and maintenance are easy.
|
Dimensions versus Weight |
Drilling system |
|||
|
Length |
11160mm |
Rock drilling |
1×HC50/R38 |
1×HC109/R38 |
|
Width |
2000mm |
Impact power |
13kW |
18.8kW |
|
Height |
1465/1985mm |
Impact flow |
105L/min |
135L/min |
|
Weight |
11000 kg |
Impact pressure |
130bar |
135bar |
|
Travelling speed, level |
10km/h |
Maximum rotary pressure |
150bar |
150bar |
|
Climbing capacity |
20% (11°) |
Impact frequency |
62Hz |
47Hz |
|
Security |
Torque |
325Nm |
780Nm |
|
|
Noise level |
＜100dB(A) |
Hole diameter |
Φ32-7mm |
Φ42-102mm |
|
Lifting safety ceiling |
Meet the requirement of FOPS and ROPS. |
Feed extension |
1600mm |
|
|
Air and water system |
Boom Model |
K 20 |
||
|
Air Compressor |
1×JN4 |
Boom Form |
Self-leveling |
|
|
Displacement |
0.5 m³/min |
Boom extension(matching) | 1200mm | |
|
Pressure |
6-8bar |
Electric Hydraulic pump station |
||
|
Device of shank |
Electronic pulse lubrication pump |
Electric motor |
45kW |
55kW |
|
Air consumption of lubrication |
0.3 m³/min |
Impact/Feed/Positioning |
Axial variable displacement piston pump |
|
|
Oil consumption of lubrication |
180-250g/h |
Rotation |
Gear pump |
|
|
Pump |
1×CR3/ |
Filter fineness |
10μ |
|
|
Power |
1.5kw/5.5kw |
Hydraulic oil tank |
240L |
|
|
Pump displacement |
3m³/h/6m³/h |
Hydraulic cooler |
Water cooler |
|
|
Chassis |
Working voltage |
380V |
||
|
Diesel |
60kw, 2200rpm |
Frequency |
50Hz |
|
|
Cummins QSB3.9-C80-31 |
Starting method |
Star-triangle |
||
| Exhaust purification |
Exhaust catalyst |
Cable reel |
1×F440 |
|
|
Drive system |
Closed hydraulic drive system for four-wheel driving |
Length of reel cabing |
100m |
80m |
|
Swinging angle |
Swing of rear axle: ±6° |
Outer diameter of cable |
Φ28mm |
Φ32mm |
|
Tire |
300-15 |
Specifications of cable |
3×35+3G6+2×1.5 |
3×50+3G6+2×1.5 |
|
Steering mechanism |
±35° articulated steering |
|
||
|
Parking braking |
Multidisc brake |
|||
|
Emergency braking |
||||
|
Fuel tank |
30L |
|||
