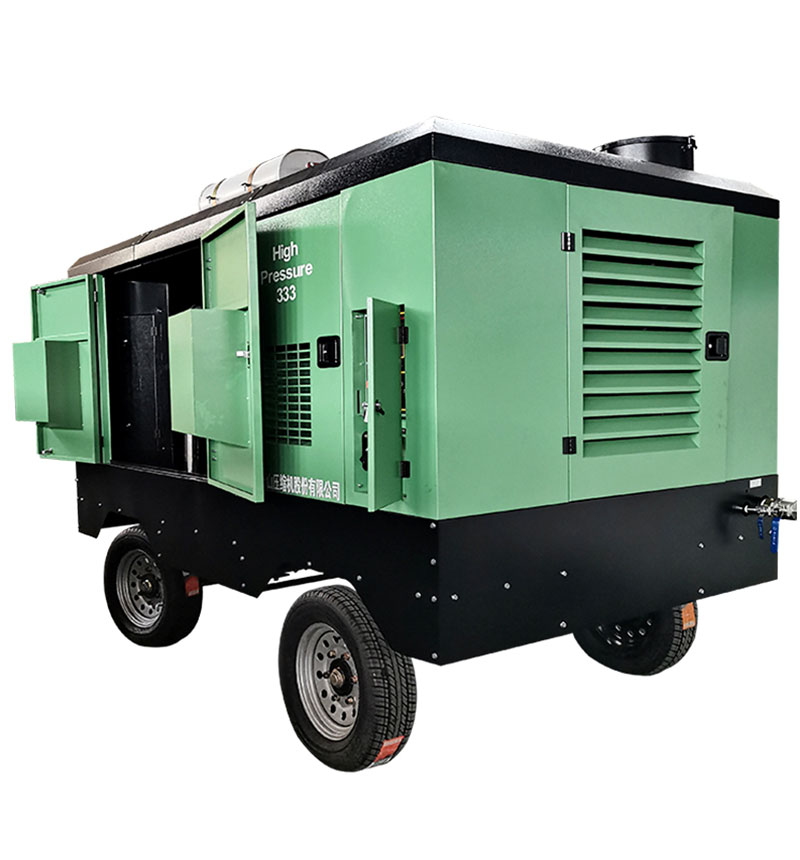

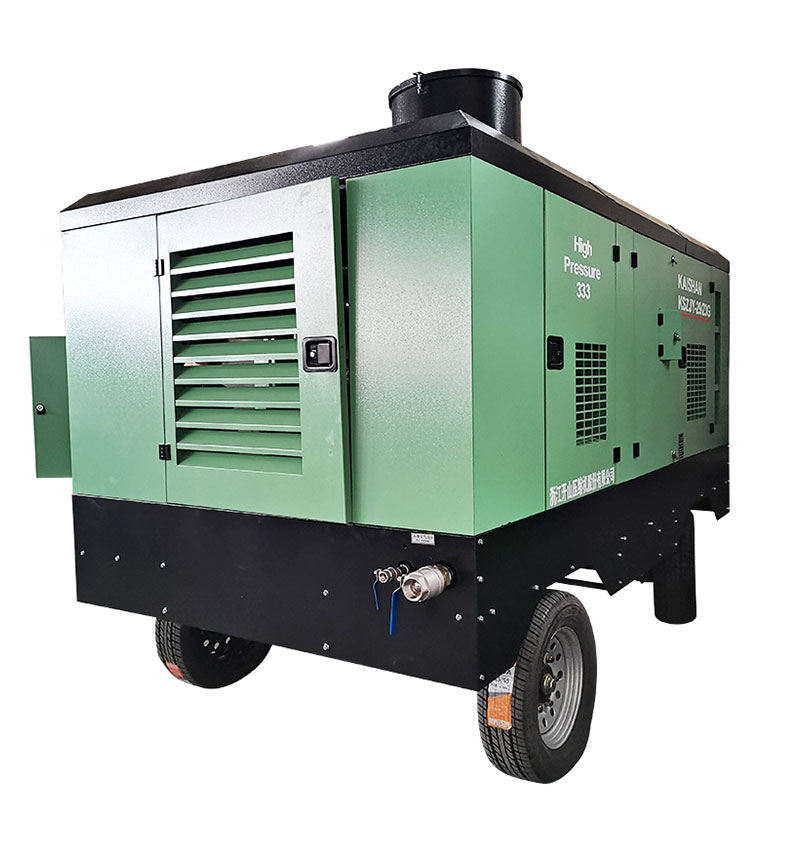

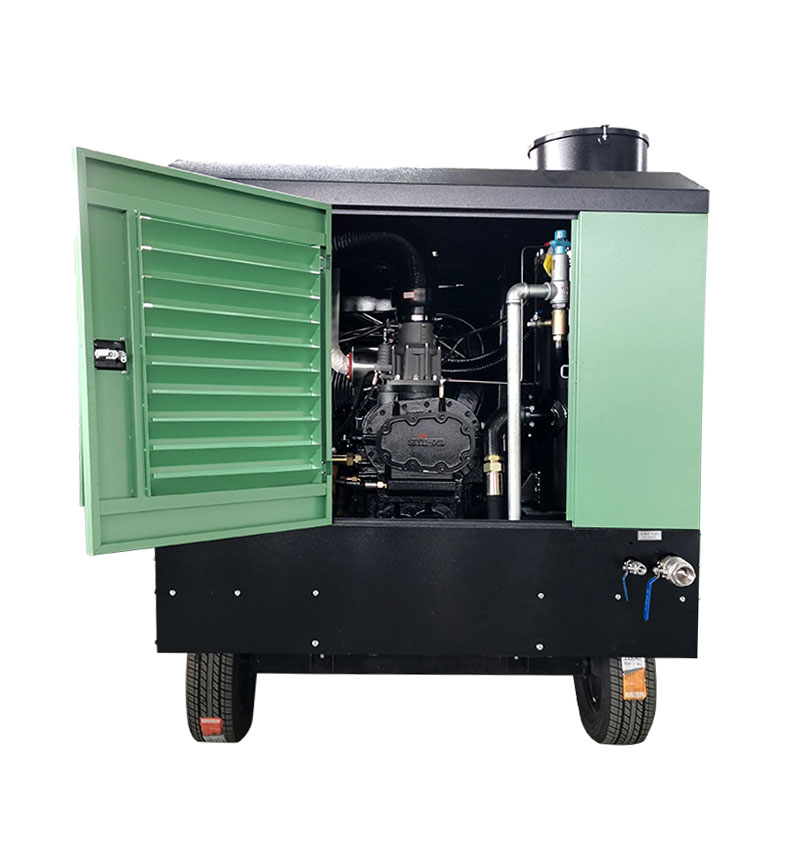

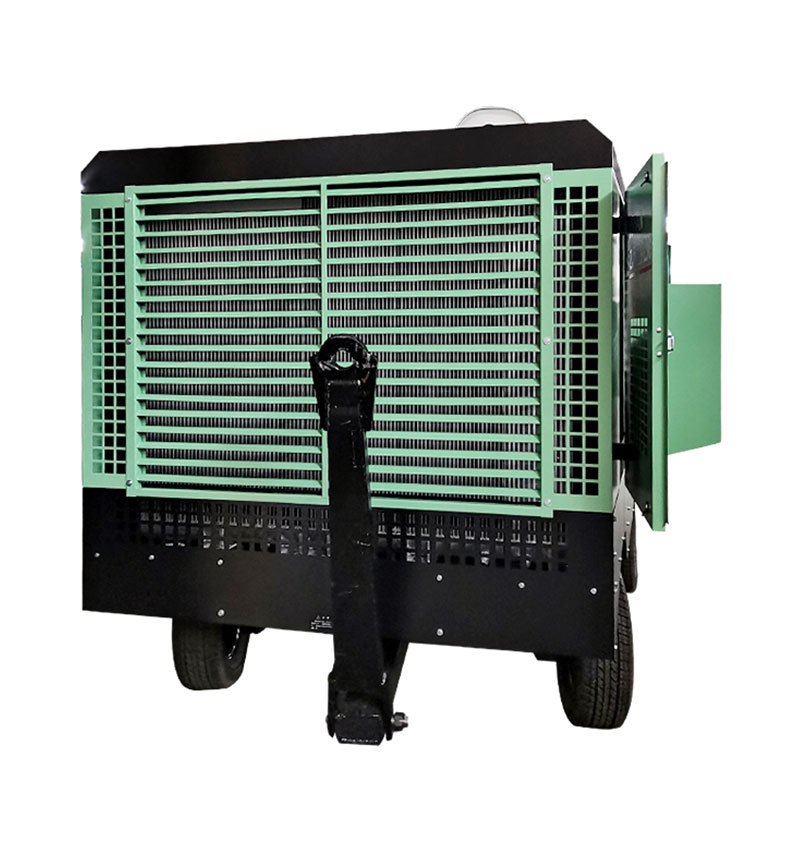

KSZJ-29/23G Stationary Diesel Air Compressor For Water Well Drill Rig
Dimension(L*W*H):3750*1950*2870mm
Weight:4850 kg
Capacity:29 m³/min
Working pressure:23 bar
Quantities can be customized
Characteristic of air compressor for water well drill rig:
1. Low operating sound and less vibration design. Easy serviceability.
2. Low fuel consumption to realize far distance outdoor usage; full protection system, energy saving.
3. High efficient Air end:
Large diameter rotor, air end connect with diesel engine through coupling and no reduction gear inside, more reliability, the
rotary speed is same with the diesel engine's, more longer lifespan.
4. Diesel Engine of Famous Brand:
Select the diesel engine of Cummins and Yuchai brand, satisfy the emission requirement of Europe, low oil consumption, after sale service system all over China.
5. Good adaptability:
The Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.
Application scope of air compressor for water well drill rig:
This 23 bar air compressor is especially designed for water conservancy
Advantages of air compressor for drill rig:
1. World advanced screw compressor with the features of highly efficiency, low maintenance and long lifetime.
2. Micro computer control system to automatically control the start and top the machine and adjust the air capacity.
3. Complete protection function with fault alarm and indication.
4. Efficient filtering and operating system.
5. Large oil filter cooler ensures the machines in optimum operation temperature when the ambient temperature is high.
6. Efficient air-cooled enclosed motor.
7. Super low noise.
1. Low operating sound and less vibration design. Easy serviceability.
2. Low fuel consumption to realize far distance outdoor usage; full protection system, energy saving.
3. High efficient Air end:
Large diameter rotor, air end connect with diesel engine through coupling and no reduction gear inside, more reliability, the
rotary speed is same with the diesel engine's, more longer lifespan.
4. Diesel Engine of Famous Brand:
Select the diesel engine of Cummins and Yuchai brand, satisfy the emission requirement of Europe, low oil consumption, after sale service system all over China.
5. Good adaptability:
The Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.
Application scope of air compressor for water well drill rig:
This 23 bar air compressor is especially designed for water conservancy
Advantages of air compressor for drill rig:
1. World advanced screw compressor with the features of highly efficiency, low maintenance and long lifetime.
2. Micro computer control system to automatically control the start and top the machine and adjust the air capacity.
3. Complete protection function with fault alarm and indication.
4. Efficient filtering and operating system.
5. Large oil filter cooler ensures the machines in optimum operation temperature when the ambient temperature is high.
6. Efficient air-cooled enclosed motor.
7. Super low noise.
KSZJ-29/23G Stationary Diesel Air Compressor Technical Parameter
|
Model
|
KSZJ-29/23G
|
|
Capacity(m³/min)
|
29
|
|
Working Pressure(bar)
|
23
|
|
Weight(kg)
|
4850
|
|
Dimension(mm)
|
3750*1950*2870
|
|
Spec&Qty of trailer
|
7.50-16*4
|
|
Matched Power
|
Yuchai YC6MK400L-K30
|
|
Suction Way
|
Supercharge
|
|
Bore*Stroke*Cylinders
|
120*145*6
|
|
Exhaust Volume (L)
|
9.839
|
|
Rated Speed (r/min)
|
1800
|
|
Uninstall Speed (r/min)
|
1400
|
|
Rated Power (KW/HP)
|
288/400
|
|
Diesel oil capacity (L)
|
28
|
|
Fuel tank capacity (L)
|
350
|
|
Electrical system voltage (V)
|
24
|
|
Head Model
|
SKY11G194
|
|
Compression stages
|
2
|
|
Compressor oil capacity (L)
|
65
|
|
Supply valve specifications*Quantity
|
G2*1,G3/4*1
|
